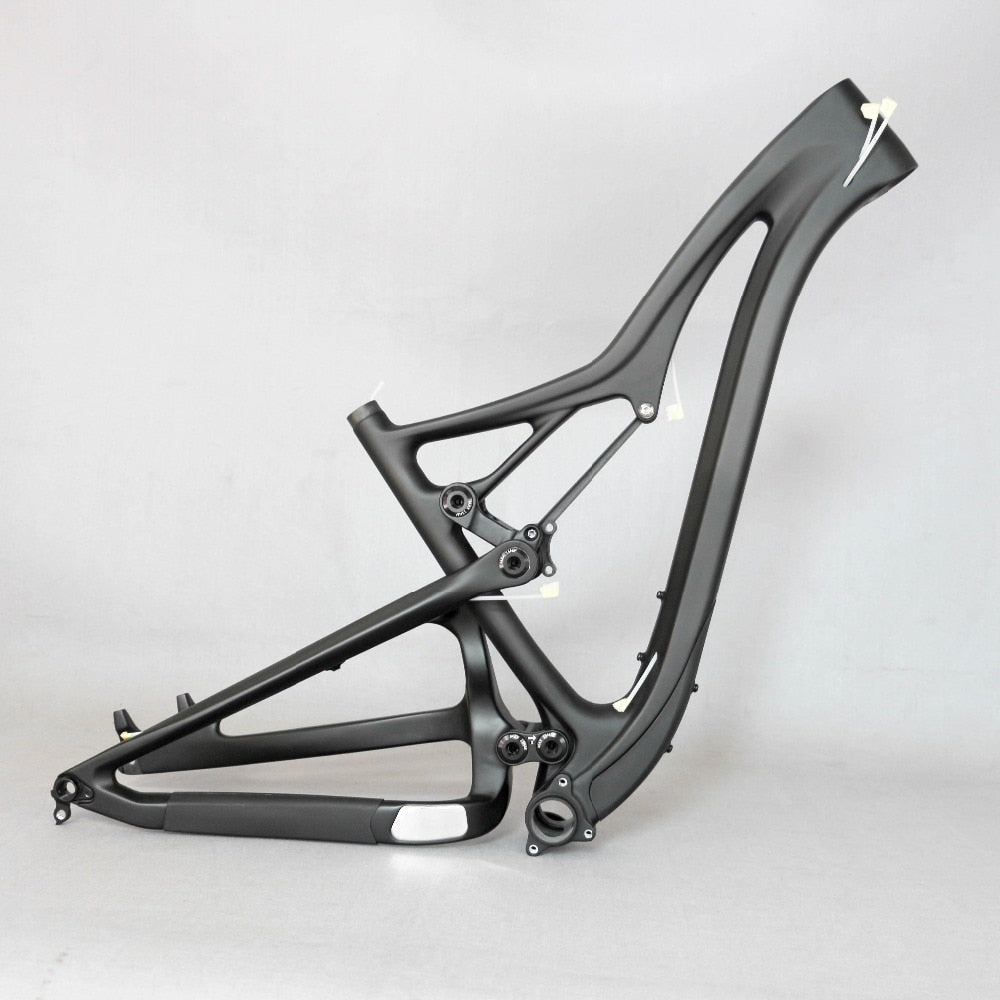

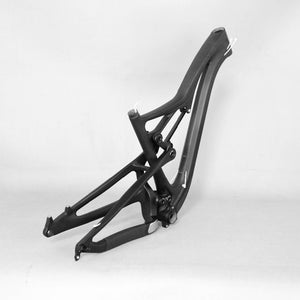

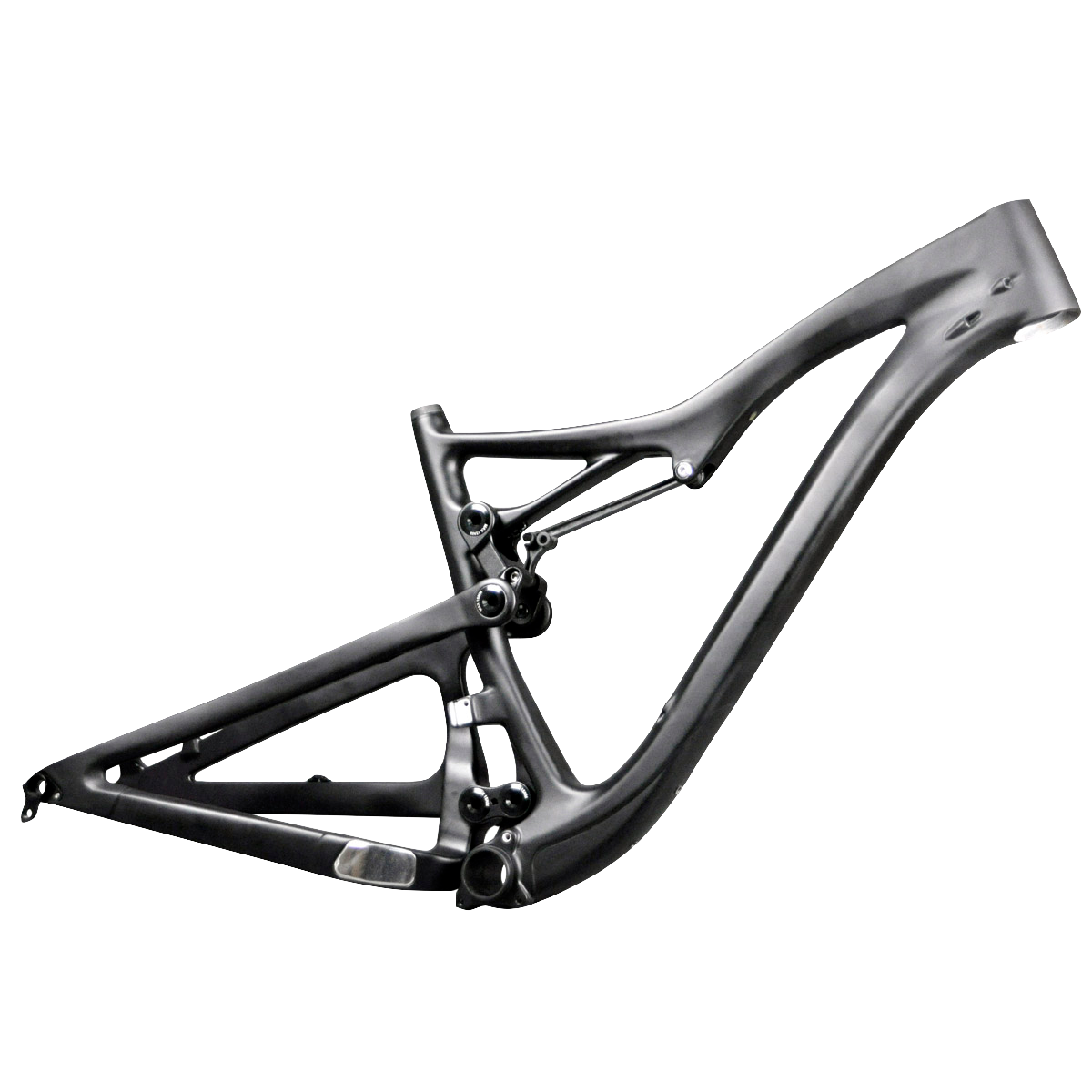

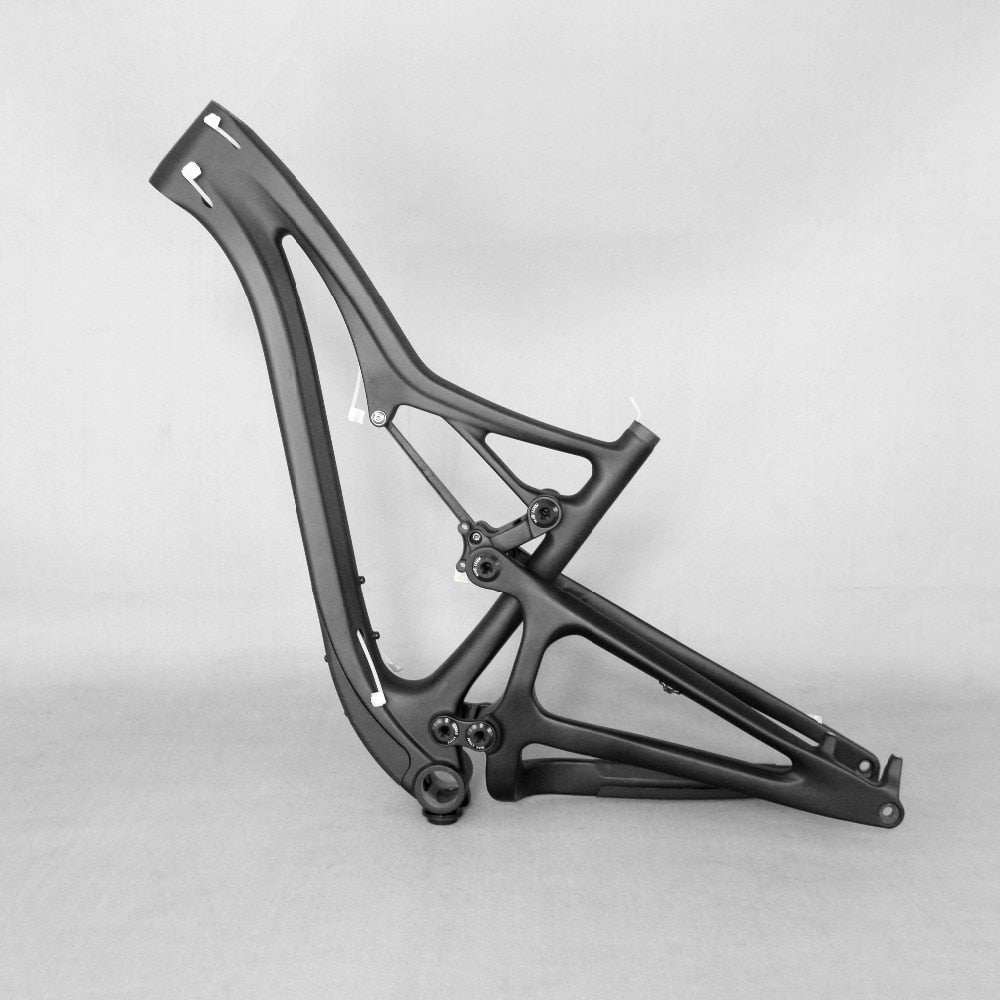

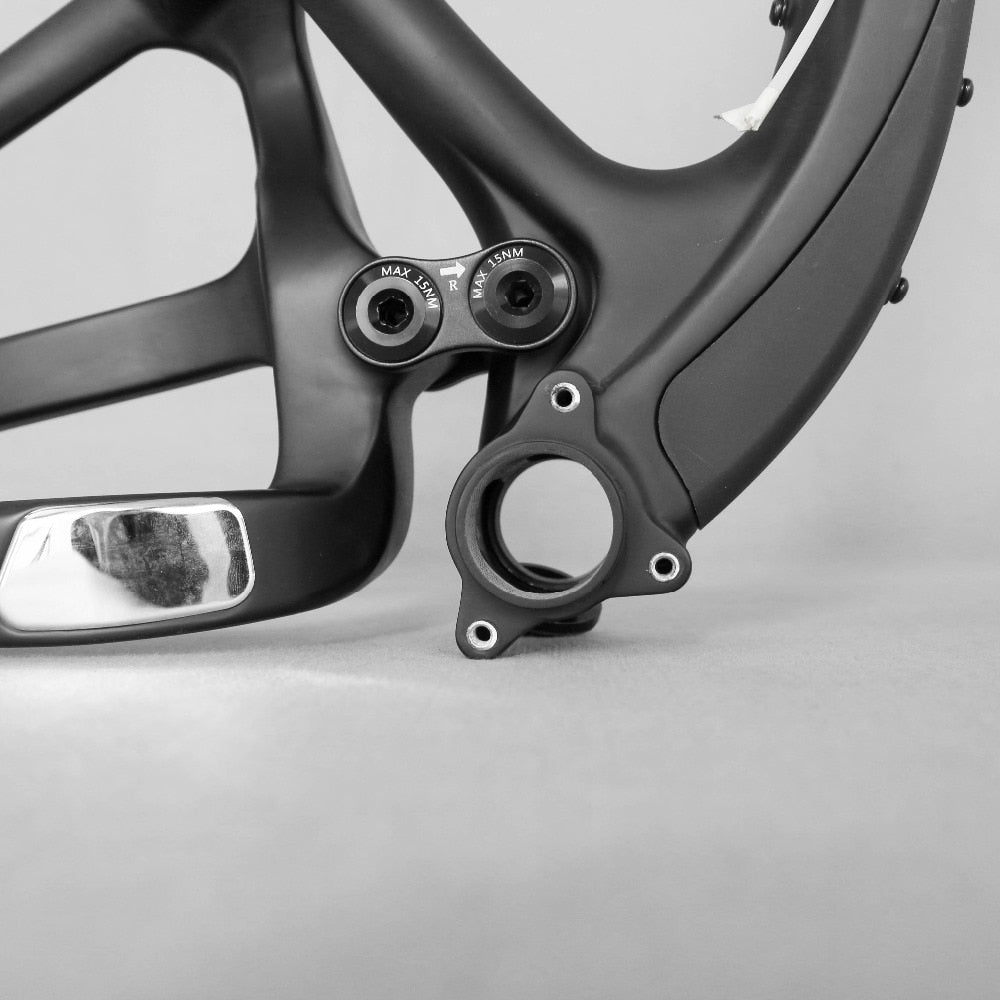

DCB F157 Pivot Mach Style Carbon Full Suspension Frame 27.5

Regular price
$1,251.00
Sale price
$1,251.00

Ready to build up your own enduro 27.5 full suspension mountain bike? Or upgrade your current frame?  No better place to start than with a quality and affordable carbon frame. This F157 frame from DIY Carbon BIkes is a light in durable options for those looking for a full suspension with 150mm rear travel. Built with triple enforced T800 Carbon, a 31.6 seat tube for wider posts and dropper posts, and equipped with a durable, stiff, and low maintenance PF92  bottom bracket, this frame is for those looking to be efficient, yet bomb decents, with playful 27.5 tires.

This frame is designed in the style of Pivot Mach, and runs 27.5 tires. The frame can take a 150-170mm fork up front.

Price includes frame, rear thru axle, headset,  and FREE GLOBAL shipping.

Product Specs:

Material: 100% High-Quality T700/T800 Carbon Fiber

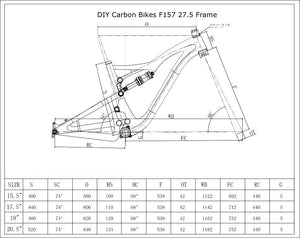

Size Availability: 15.5”,17.5” ,19”, 20.5”

Finish: UD Matt (Custom Colors available for $75 upgrade, see options in images)

Rear Shock Eye to Eye: 200x57

Rear Shock Hardware: 22x8mm top and bottom

Rear Travel: 150mm

Front Fork Travel: 150-170mm

Disc Rotor size:160mm

Weight:  1995g ±30g

Bottom Bracket: PF92

Cable Type: Internal Routing for the brake line, rear derailleur, dropper post.

Rear Spacing: BOOST 12*148mm thru axle (Axle included)

Head Tube: 1-1/8”,1-1/2” , integrated 42mm, 52mm cups (Headset included)

Seat Tube: For 31.6mm diameter seat post

Max Tire size: 27.5x2.6

Shipping: Frame is shipped Expedited Factory Direct and will arrive in 15-30 days at your door generally. For the most updated and detailed information about shipment see our Shipping and Returns page at the bottom of the site under Support.

Warranty: This frame comes with two years full warranty and three years wholesale crash replacement.
