Ready to build up your own light and durable carbon Trail/AM MTB frame? Or upgrade your current frame? No better place to start than with a quality and affordable carbon frame. This F130 frame from DIY Carbon BIkes is a light in durable options for those looking for a full suspension with 130mm rear travel. Built with triple enforced T800 Carbon, a 31.6 seat tube for wider posts and dropper posts, and equipped with a durable, stiff, and low maintenance and durable BSA English Threaded bottom bracket, this frame is for those looking to be efficient, yet bomb decents with some big jumps thrown in.
This frame is designed in the style of Trek Fuel, and can take 29er or 27.5+ wheels. The frame can take up 130-140mm fork in the front with 29er wheels and 140-150mm fork with 27.5+ wheels.
Price is total shipped which includes frame, rear thru axle, headset, and FREE GLOBAL shipping
For our full build kit list with components for this bike see here - diycarbonbikes.com/pages/f130trekfuelbuildkit
Material: 100% High-Quality T700/T800 Carbon Fiber
Size Availability: 15.5” (S),17.5” (M) ,19.5" (L)
Finish: UD matte (Custom Colors available for $75 upgrade for Standard, $150 upgrade for Special Paint -- See options in product images)
Rear Shock Eye to Eye: 200*51mm or 200*57mm - All COMPATIBLE options HERE
Rear Travel: 130mm
Front Fork Travel: 130-140mm for 29er wheels (140-150mm for 27.5 plus wheels)
Disc Rotor size:160mm
Weight: 2350g ±30g (M)

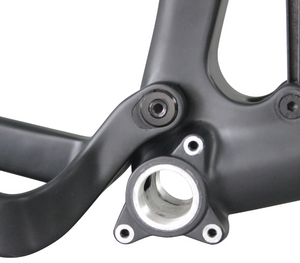

Bottom Bracket: BSA English Threaded
Cable Type: Internal Routing for the brake line, rear & front derailleur, dropper post.
Rear Spacing: BOOST 12*148mm thru axle (Axle included)
Head Tube: 1-1/8”,1-1/2” , integrated 42mm, 52mm cups (Headset included)
Seat Tube: For 31.6mm diameter seat post
Max Tire size: 29x2.5 and 27.5x2.8
Shipping: Frame is shipped Expedited Factory Direct and will arrive in 15-30 days at your door generally. For the most updated and detailed information about shipment see our Shipping and Returns page at the bottom of the site under Support.
Warranty: This frame comes with a two years full warranty and three years wholesale crash replacement.
