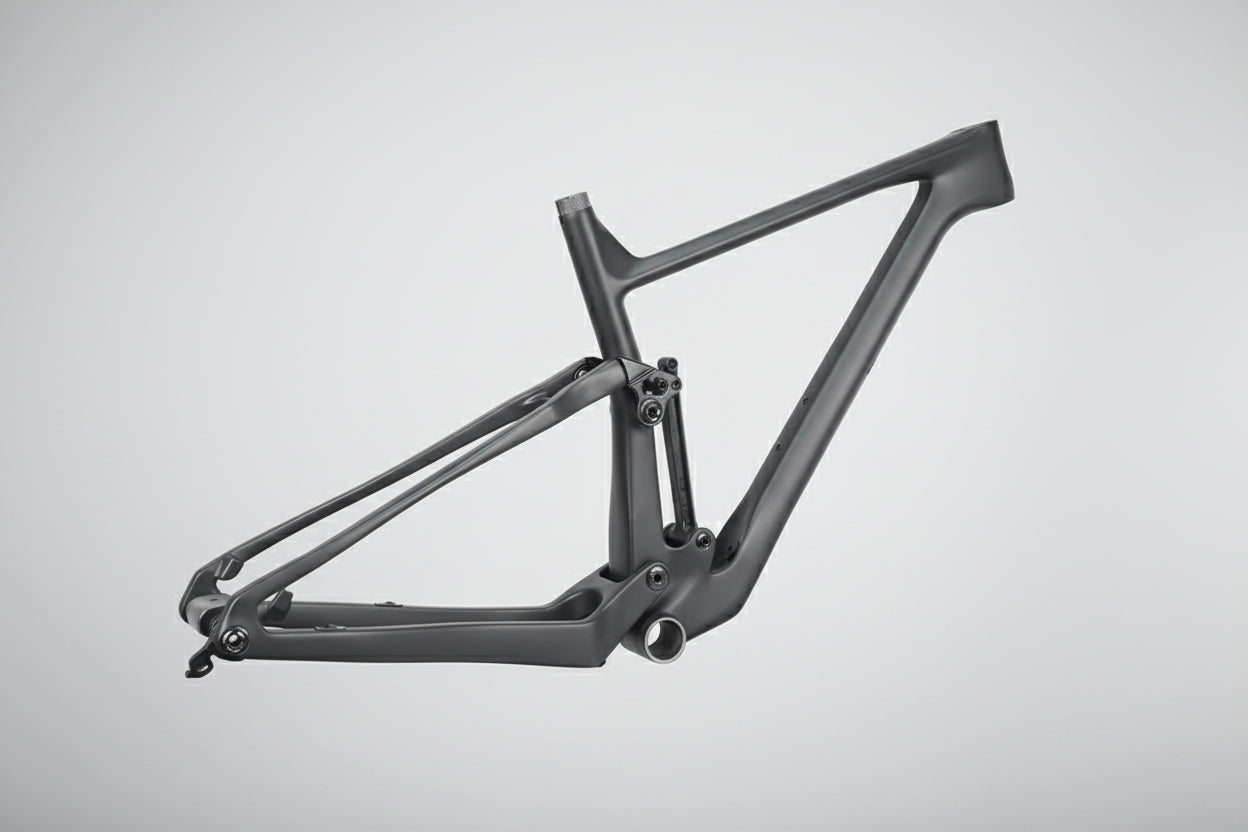

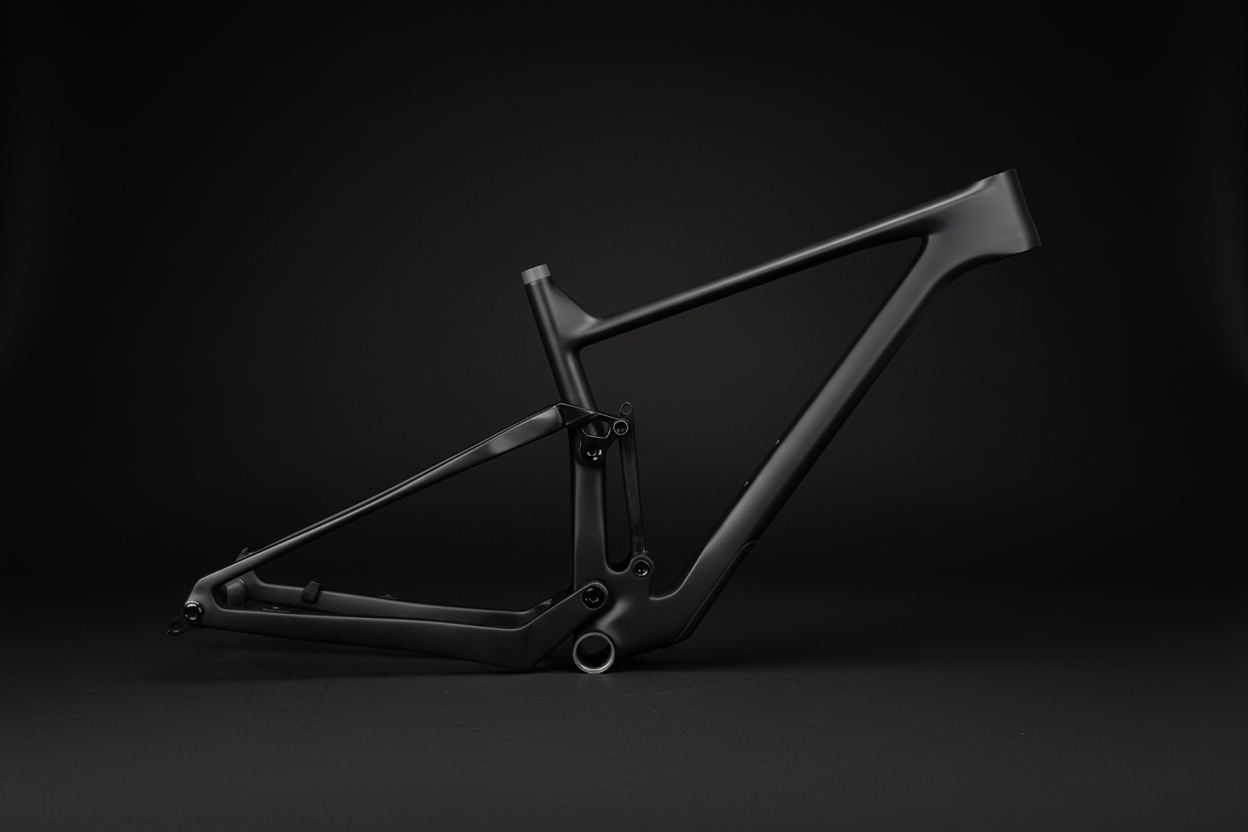

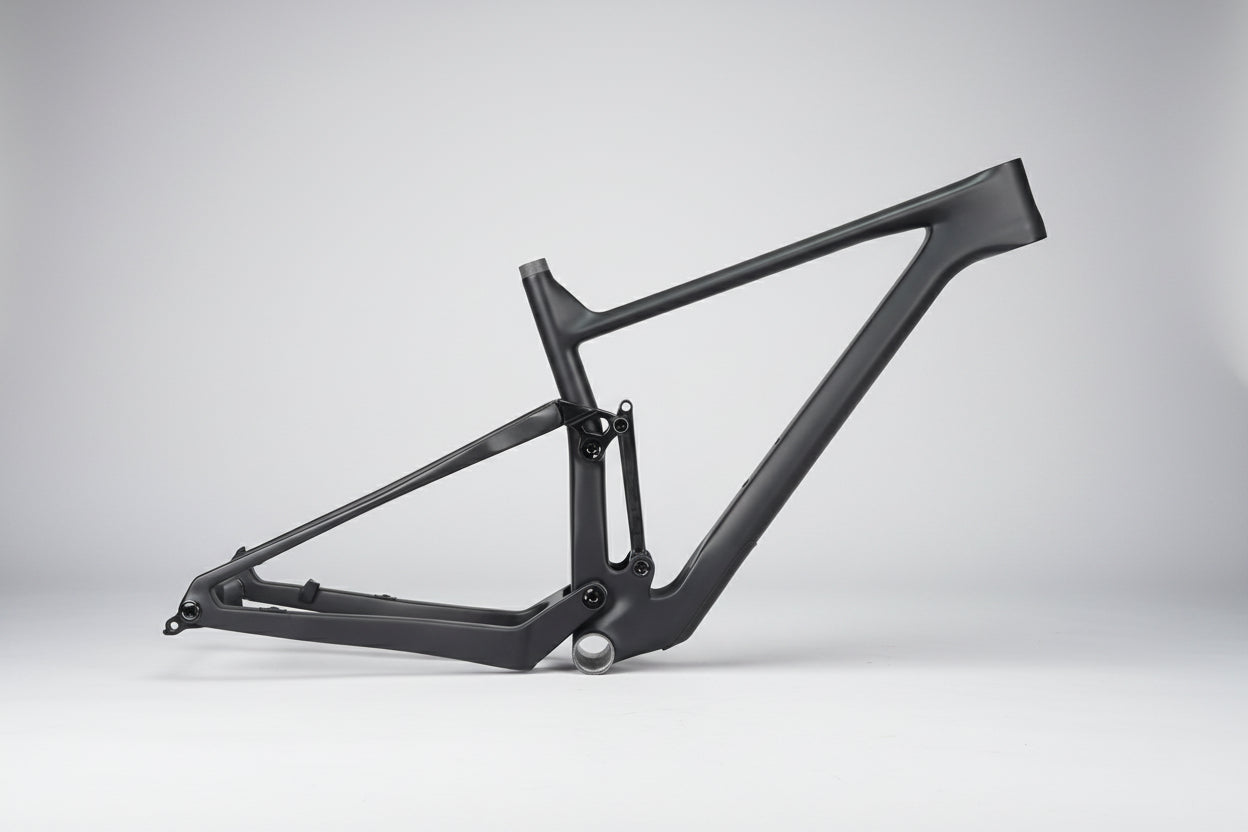

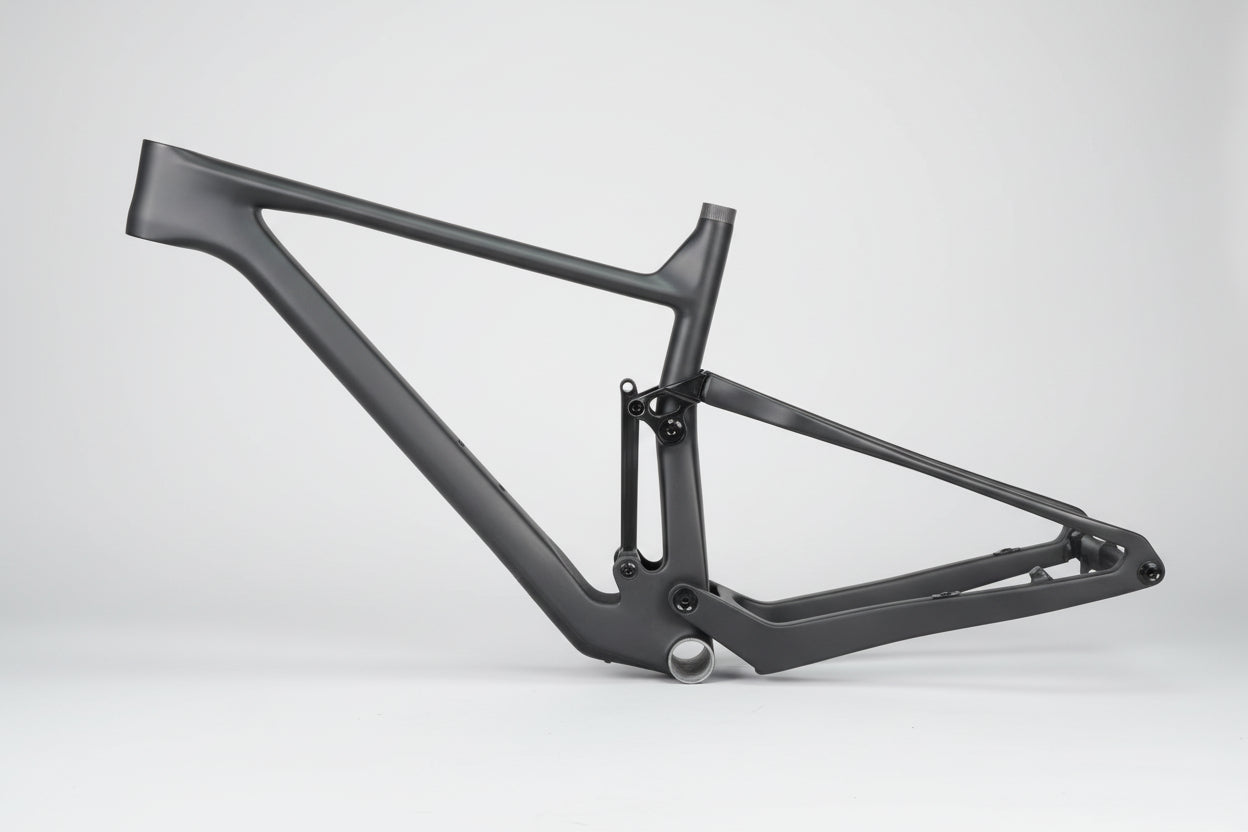

DCB F100U Trek Top Fuel Style Full Suspension Carbon 29er Frame
Introducing the DCB F100U Top Fuel–style carbon frame — a lightweight, efficient full-suspension platform built for modern XC and fast trail riding. Designed for riders who value speed, responsiveness, and all-day efficiency, the F100U blends race-ready weight with confident handling and modern compatibility.
With short-travel suspension tuned for efficiency, this frame excels on technical climbs, flowing singletrack, and endurance-focused rides. Its refined carbon construction delivers a lively ride feel while maintaining the stiffness and durability demanded by competitive and performance-driven riders.
Product Description
Material:
High-modulus Toray T700 carbon fiber, engineered for lightweight strength and responsive ride quality.
Wheel Size:
29er
Compatible with 27.5 x 2.6 tires and mulet as well.

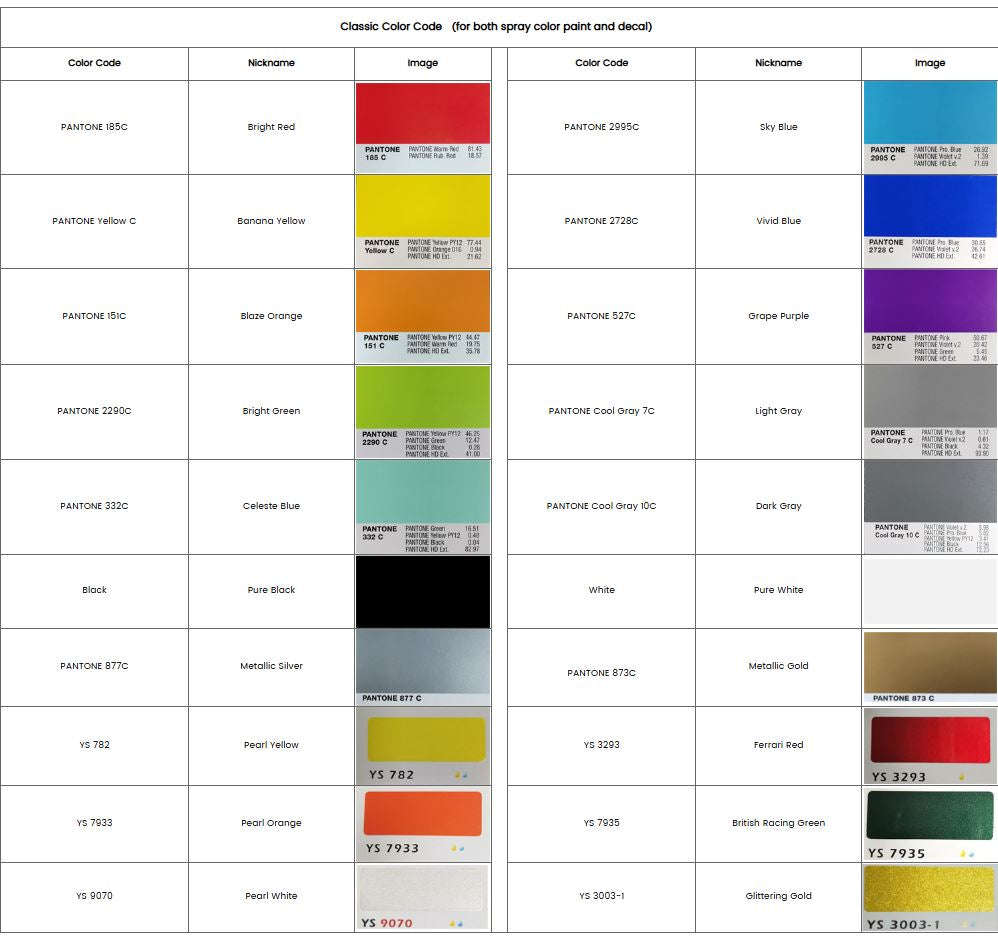

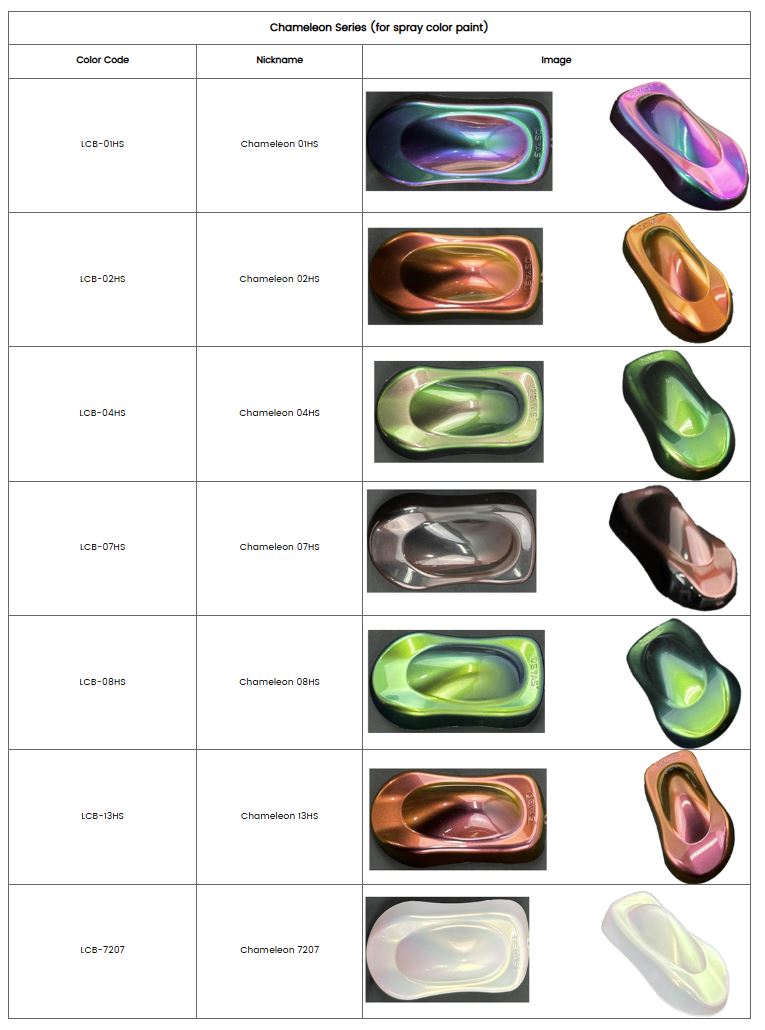

Color:
Matte or Glossy finish, colors, and custom colors as well (See product images)

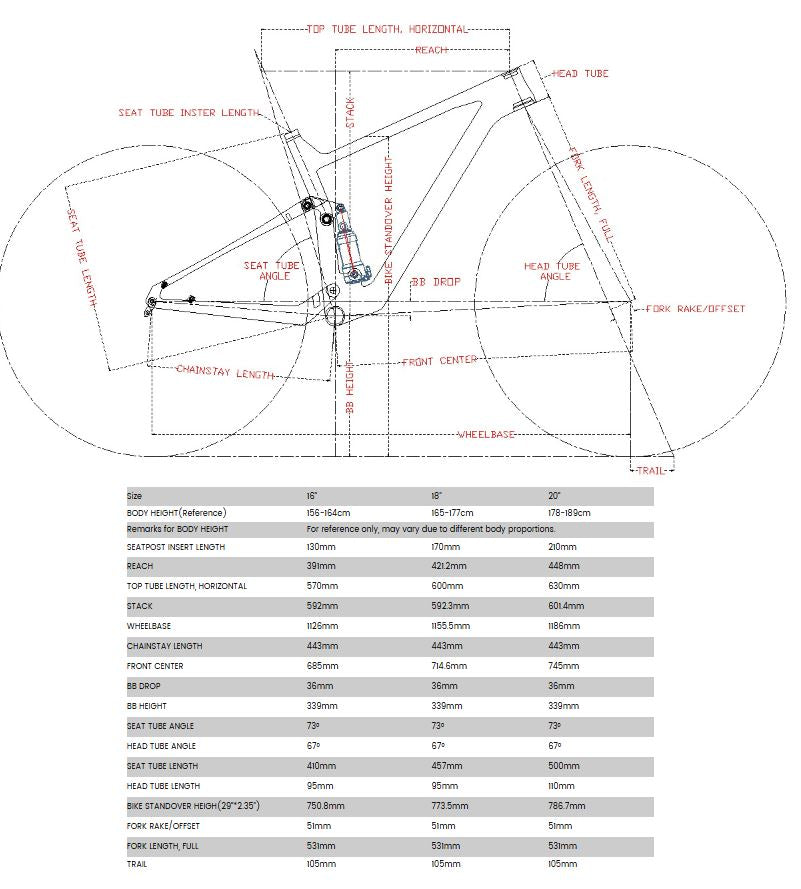

Sizes:
Small (16), Medium (18), Large (20)
Tire Clearance:
Up to 29 x 2.4 or 27.5 x 2.8
Rear Spacing:
12 x 148 Boost
Rear Hanger:
UDH Universal Derailleur Hanger (SRAM Transmission compatible)
Front Travel Recommendation:
100–130mm suspension fork
Rear Travel:
Up to 120mm rear wheel travel
Shock compatibility: 165 x 40mm or 165 x 45mm trunnion mount
Seatpost:
31.6mm diameter (34.9mm clamp)
Dropper compatible with deep insertion:
-
Size 16: up to 130mm
-
Size 18: up to 170mm
-
Size 20: up to 210mm
Bottom Bracket:
Press Fit BB92
Brake Type:
Post-mount disc brake, 160mm rear rotor
Drivetrain Compatibility:
Mechanical and electronic compatible
Max chainring size: 34T
Weight:
1960g (Size 18, ±50g)
Standards:
ISO 4210 tested
SHIPPING:
Arrival in 15–30 days to your door
WARRANTY:
Full 2-year warranty, lifetime wholesale crash replacement
