Introducing the DCB F130-E Giant Trance X Advanced E+ Carbon Trail E-Bike eMTB Frame — a balanced, mid-travel electric mountain bike platform engineered for riders who want efficient climbing, confident descending, and clean motor integration in a lightweight carbon chassis.
Designed around modern trail geometry and built with a blend of Toray T700 and T800 carbon fiber, the F130-E delivers the perfect mix of stiffness, strength, and compliance for real-world trail performance. Whether you’re tackling technical singletrack, flowing descents, or long-distanFe trail missions, this frame provides responsive handling with the power to go further.
Built for Modern Trail Riding
120mm Rear Travel, 130mm Front — Efficient & Capable
With 120mm of rear suspension travel and compatibility for a 184 x 44mm rear shock, the F130-E offers the ideal balance of pedaling efficiency and terrain control.
Integrated Bafang Power System
Compatible with:
-
Bafang M510 – 48V 250W (lightweight trail efficiency)
-
Bafang M560 – 48V 750W (high-torque aggressive riding)
Paired with a Dengfu 48V 14Ah (672Wh) battery, the system delivers smooth pedal assist, strong torque output, and reliable range for extended trail days.
Premium Carbon Construction
Constructed from Toray T700 & T800 carbon fiber, combining impact durability with weight savings and torsional stiffness where it matters most.
Boost Trail Standards
-
148 x 12mm Boost thru-axle
-
Tapered 1-1/8" to 1-1/2" headtube
-
Full internal cable routing
Modern compatibility for today’s drivetrains and suspension setups.

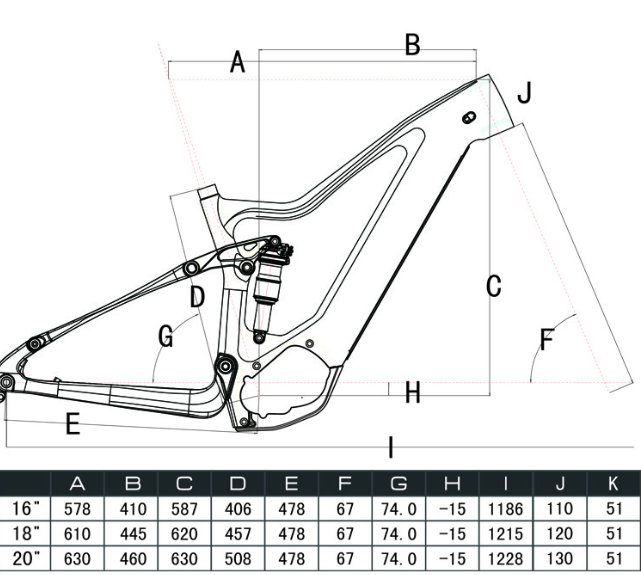

Frame Specifications
Type: Trail Full Suspension e-MTB
Material: TORAY T700 & T800 Carbon Fiber
Rear Travel: 120mm
Rear Shock: 184 x 44mm (SS)
Front Fork: 120-140mm
Motor Options: Bafang M510 (48V 250W) / M560 (48V 750W)
Battery: Integrated 48V 14Ah (672Wh)
Rear Spacing: 148 x 12mm Boost Thru Axle
Headtube: Tapered 1 1/8" – 1 1/2"
Cable Routing: Full Internal
Max Tire Clearance:
• 27.5 x 2.8"
• 29 x 2.3"
Finish Options: UD Matte or Glossy
Included With Frame
-
Carbon frame, Headset, Thru axle, Motor (selected option), Battery, Charger, Display, all E-parts and cables included.
