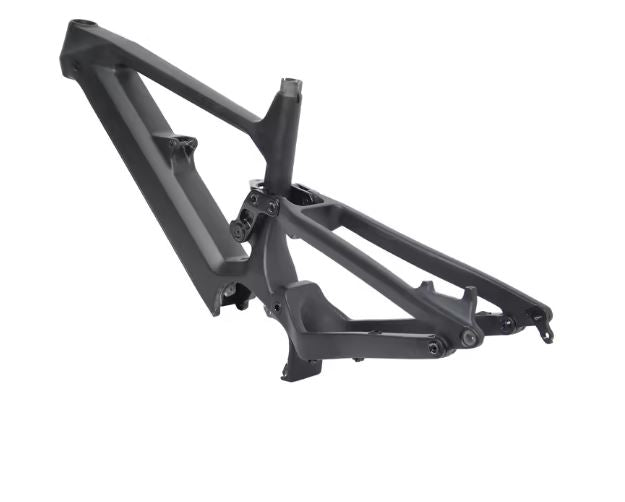

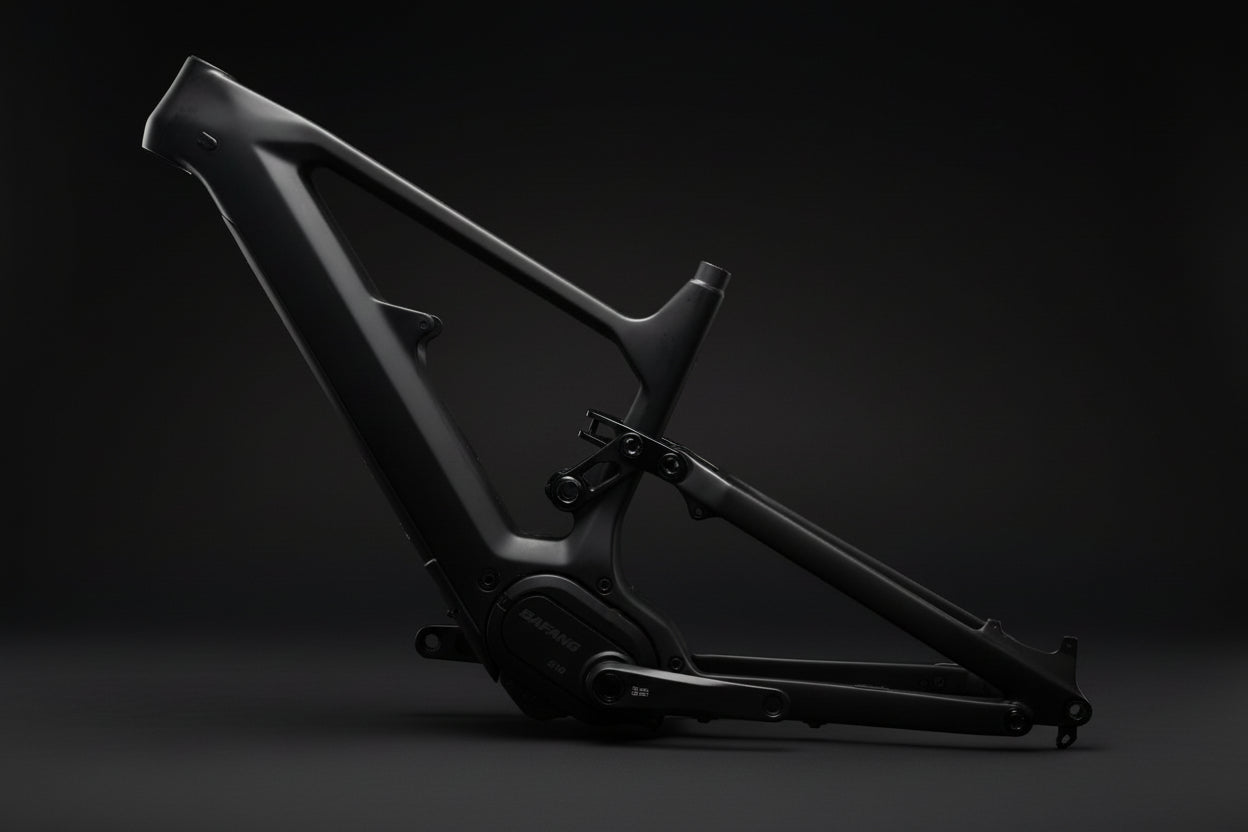

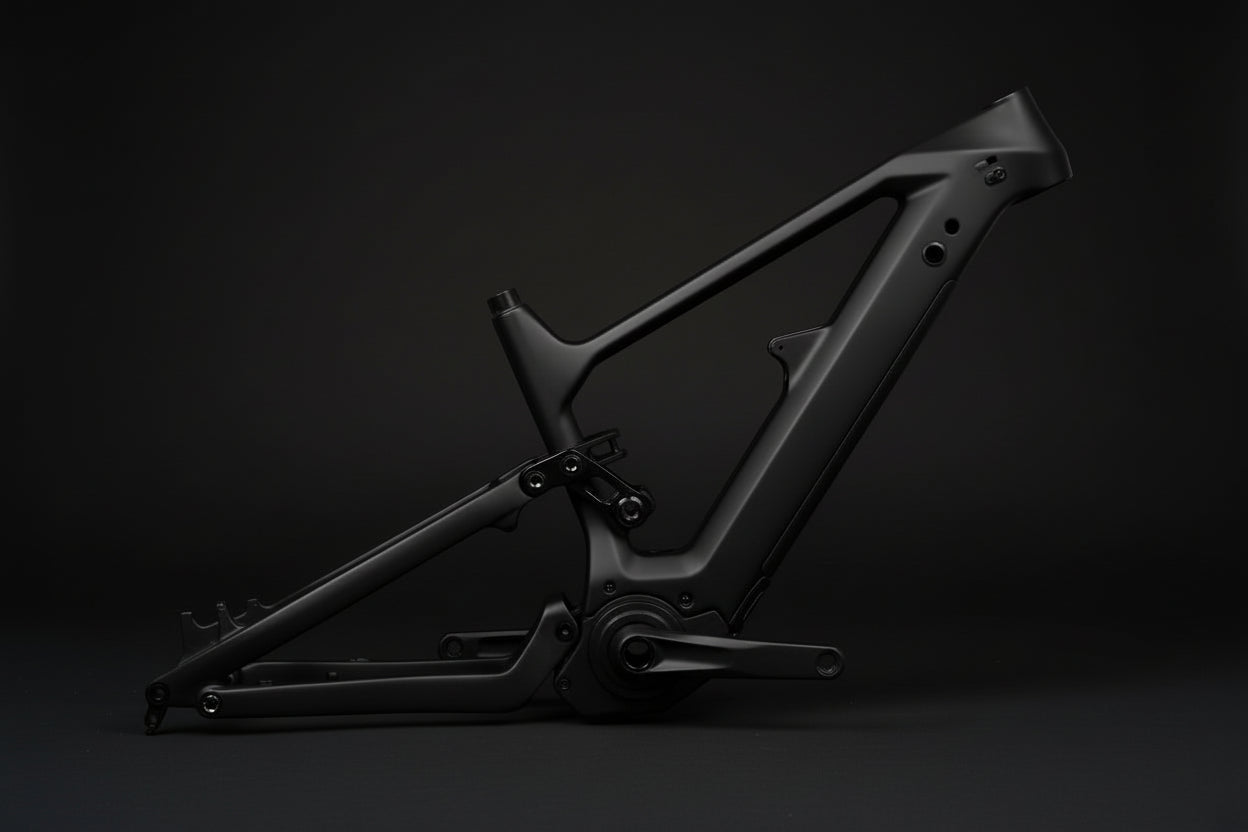

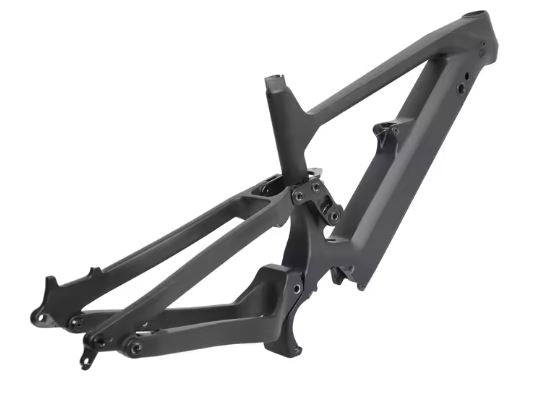

DCB F170-E Canyon Strive:ON CFR Style Full Suspension eMTB Frame
Introducing the DCB F170-E Strive:ON–style carbon eMTB frame — a powerful, modern electric mountain bike platform built for aggressive trail riding and long-distance capability. Designed around a downtube-mounted shock layout and a fully integrated motor and battery system, the F170-E delivers stability, control, and confidence on demanding terrain.
With 150mm of rear travel and 160 to 170mm up front, generous tire clearance, and compatibility with high-output Bafang motors, this frame is built for riders who want the feel of a modern enduro-inspired eMTB without compromise. Whether you’re climbing technical terrain or charging descents, the F170-E provides a balanced, planted ride with clean integration and modern standards throughout.
Product Description
Frame Material:
High-strength Toray T700 carbon fiber, engineered for durability, stiffness, and trail-focused ride feel.
Bike Type:
Full suspension electric mountain bike (eMTB) frame
Rear Travel:
150mm rear suspension travel
Shock compatibility: 210 x 55mm
Motor Compatibility:
-
Bafang M510 FC2.0 – 48V 250W
-
Bafang M560 – 48V 500W
-
Bafang M560RS – 48V 750W
Battery:
Integrated 48V 17.5Ah (840Wh) battery
Wheel & Tire Compatibility:
-
29 x 2.6
-
27.5 x 2.8
Rear Spacing:
12 x 148 Boost thru-axle
Rear Hanger:
UDH Universal Derailleur Hanger (Easy replacement, compatible with all deraillairs including SRAM AXS Transmission)
Headset:
Tapered 1-1/8” to 1-1/2”
(OD 51/62mm | ID 44/56mm)
Cable Routing:
Full internal cable routing
Crankset:
38T chainring with 170mm crank arms
Finish Options:
Matte or glossy black, color options
Included with Frame:
-
Carbon frame
-
Headset
-
Thru axle
-
Motor (selected option)
-
Battery and charger
-
Battery bracket
-
E-display
- Cranks, chainring
Shock Hardware:
-
Front: 32.3 x 8mm
-
Rear: 16.8 x 8mm
Shipping: 15-30 days at your door.
Warranty: Full two year warranty.
