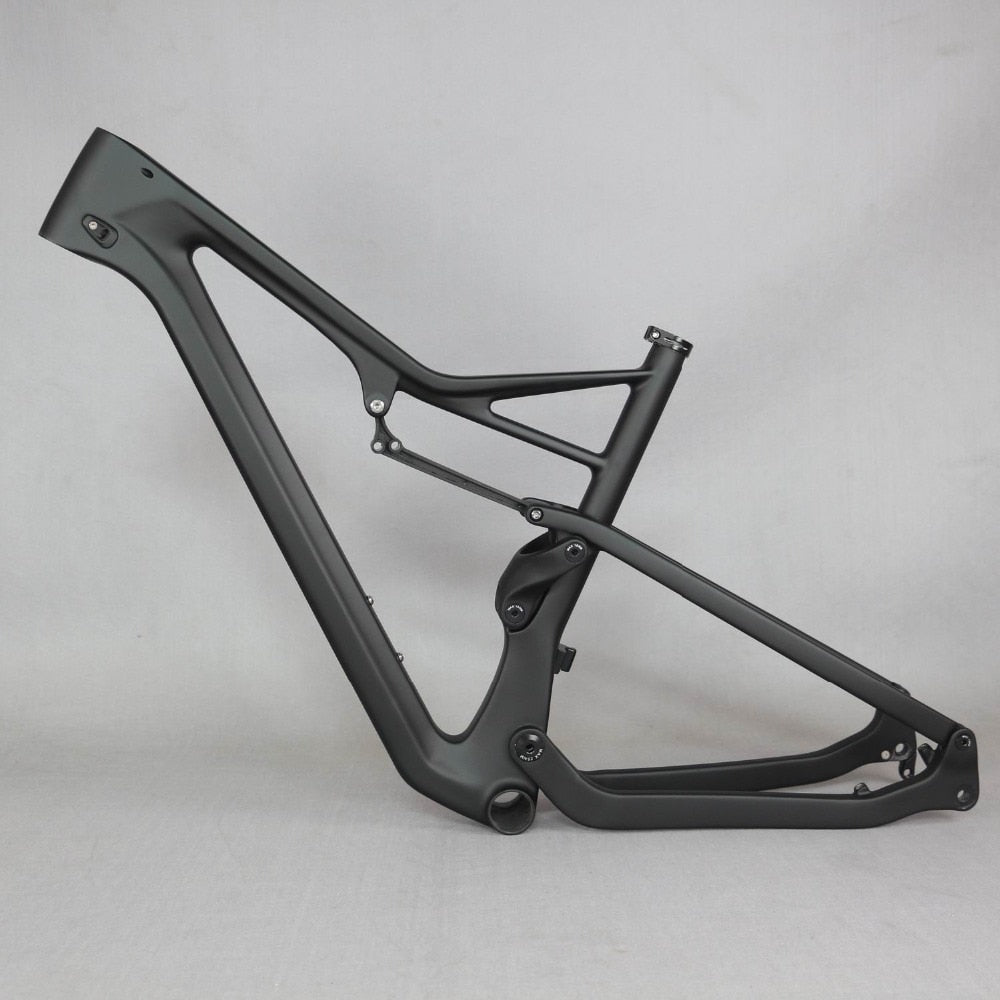

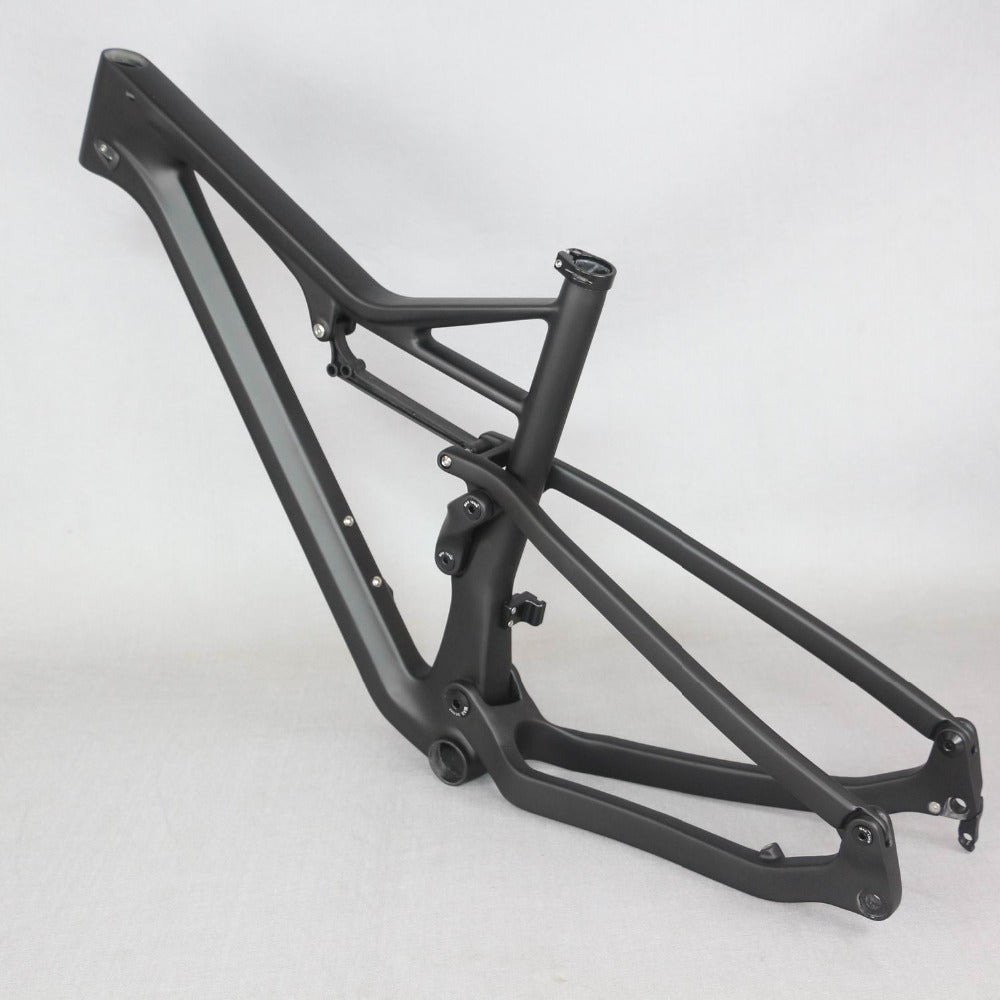

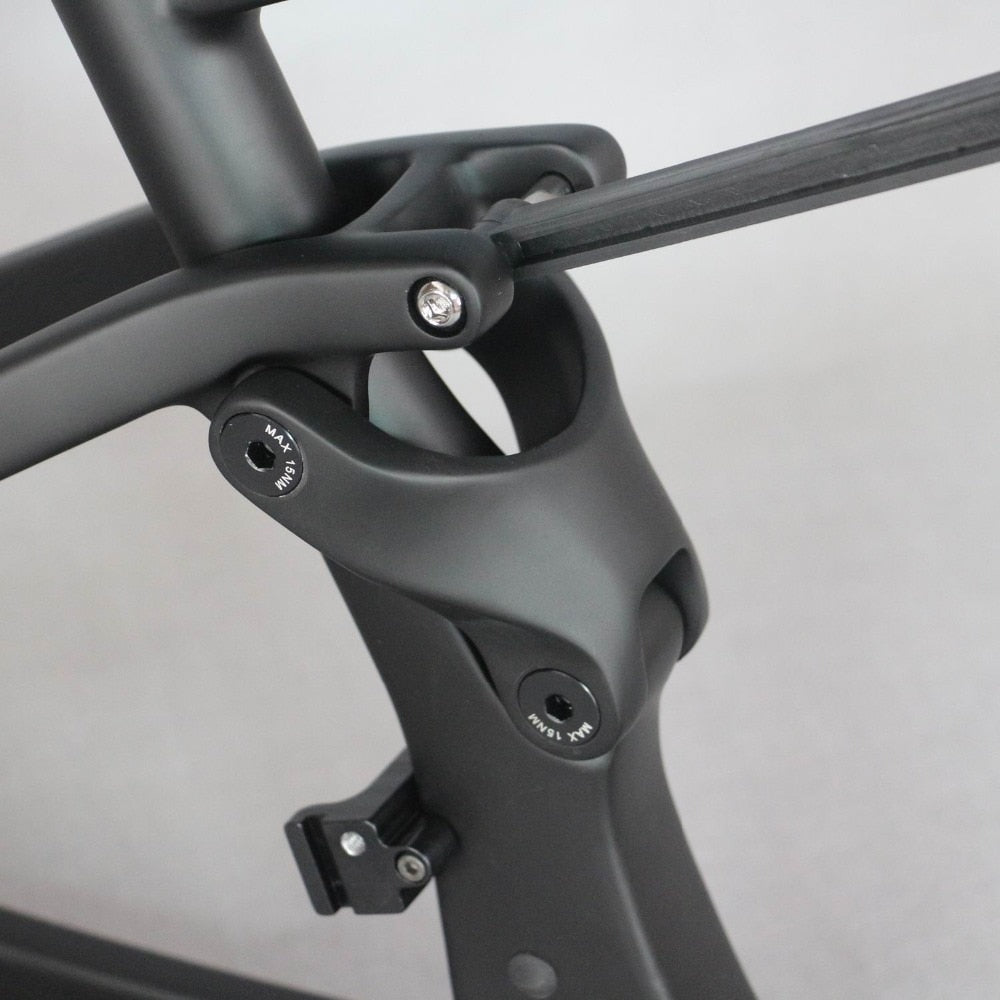

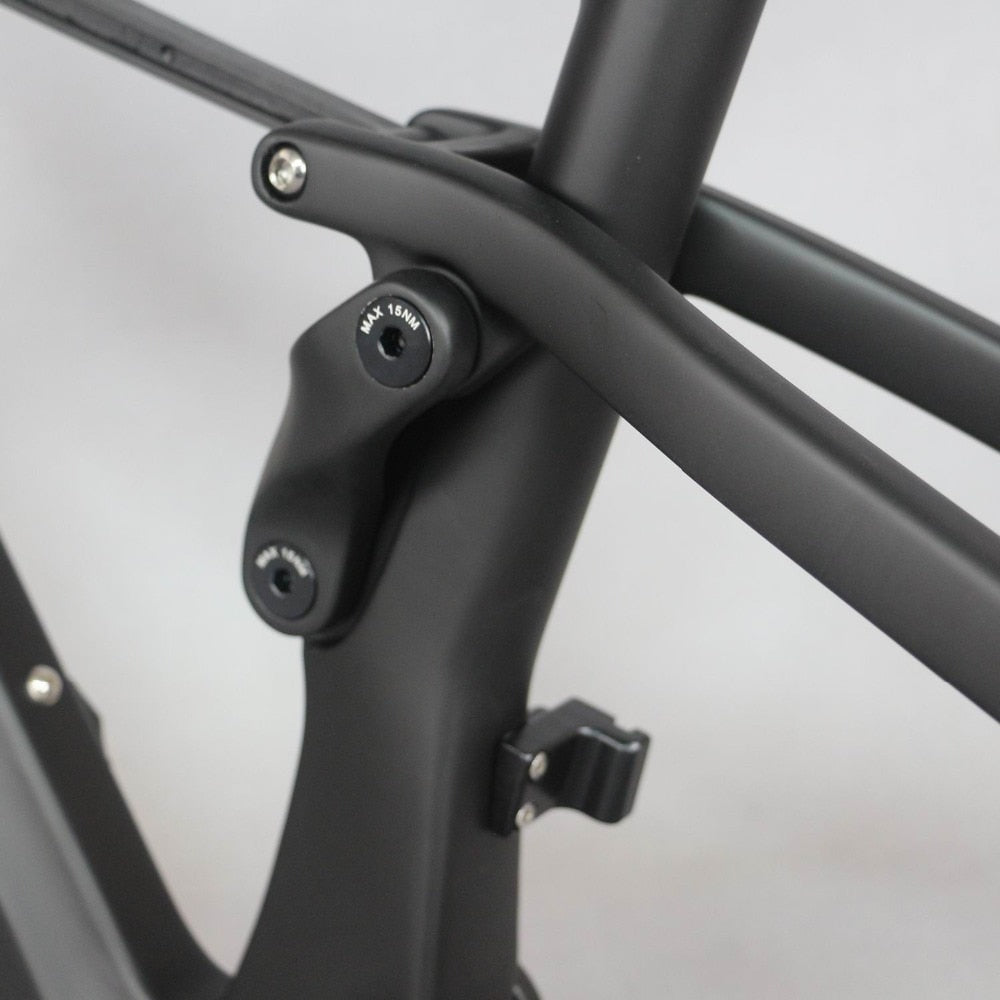

Ready to build up your own light and durable carbon Trail/AM MTB frame? Or upgrade your current frame? No better place to start than with a quality and affordable carbon frame. This F120 frame from DIY Carbon BIkes is a light in durable options for those looking for a full suspension with 120mm rear travel. Built with triple enforced T800 Carbon, a 31.6 seat tube for wider posts and dropper posts, and equipped with a durable, stiff, and low maintenance and durable, this frame is for those looking to be efficient, yet bomb descents with some jumps thrown in.
This frame is designed in the style of Specialized Camber, and can take 29er or 27.5+ wheels. The frame can take up 120-140mm fork in the front with 29er wheels and 140-150mm fork with 27.5+ wheels.
Price: $845 total shipped which includes frame, rear thru axle, headset, and FREE GLOBAL shipping.
Material: 100% High-Quality T700/T800 Carbon Fiber

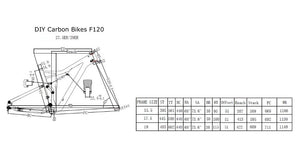

Size Availability: 15.5” (S),17.5” (M) ,19" (L)
Finish: UD Matt or glossy
Rear Shock Eye to Eye: 190x50
Rear Shock Hardware: 22x8mm top, bottom 40x8mm.
Rear Travel: 120mm
Front Fork Travel: 120-130mm 29er wheels (130-140mmmm for 27.5 plus wheels)
Disc Rotor size:160mm
Weight: 2095g ±30g (M)

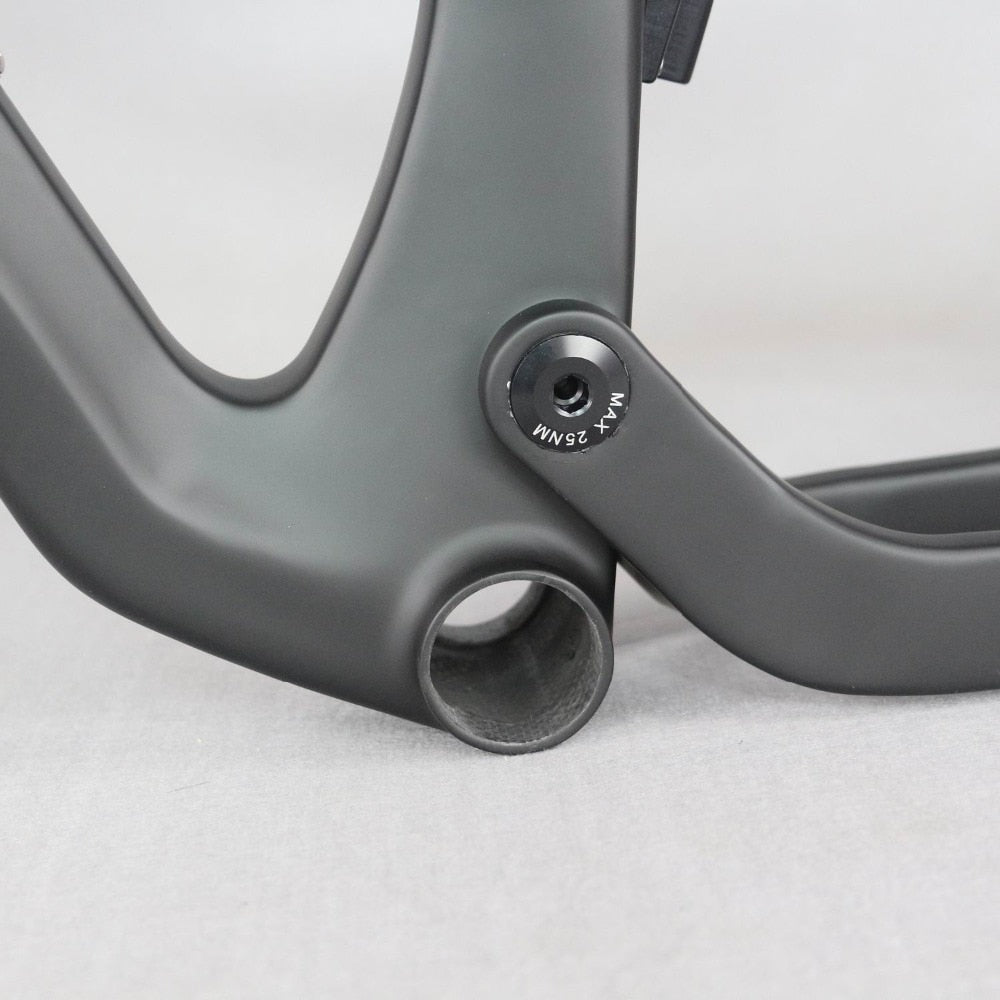

Bottom Bracket: PF92
Cable Type: Internal Routing for the brake line, rear & front derailleur, dropper post.

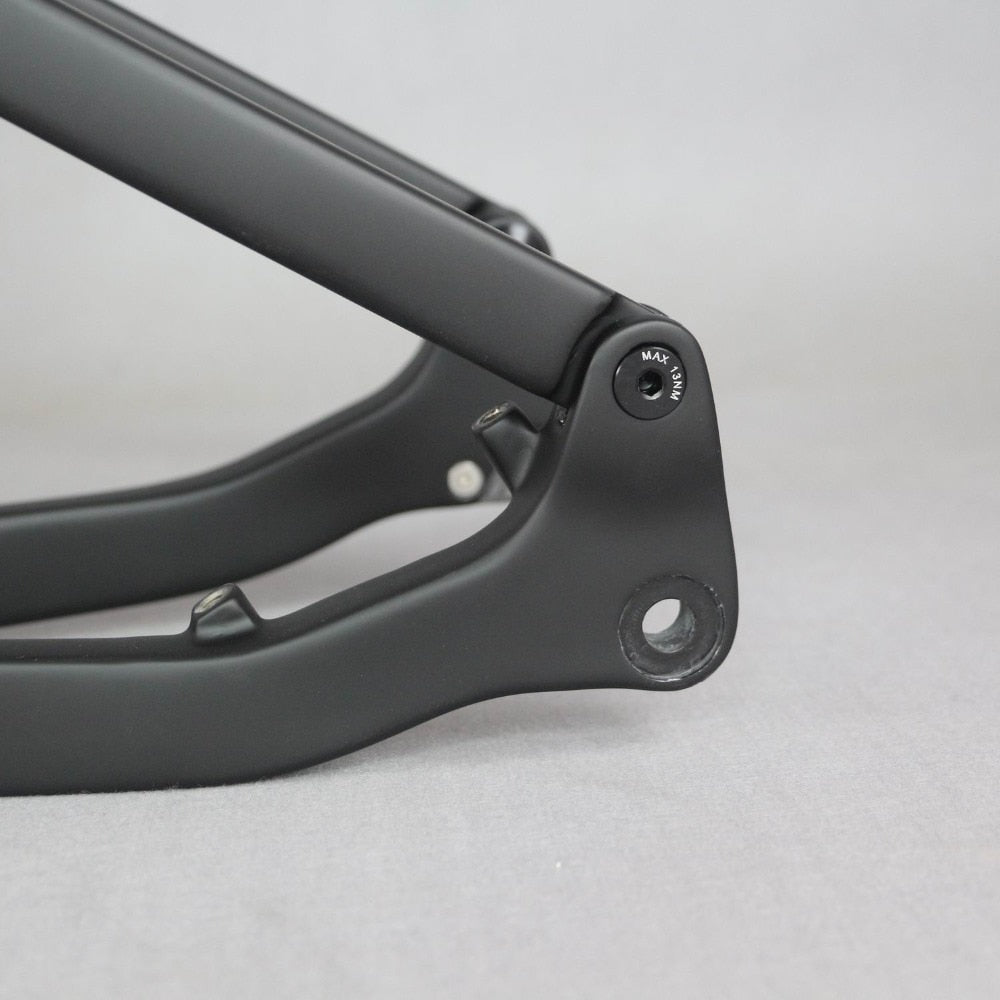

Rear Spacing: BOOST 12*148mm thru axle (Axle included)

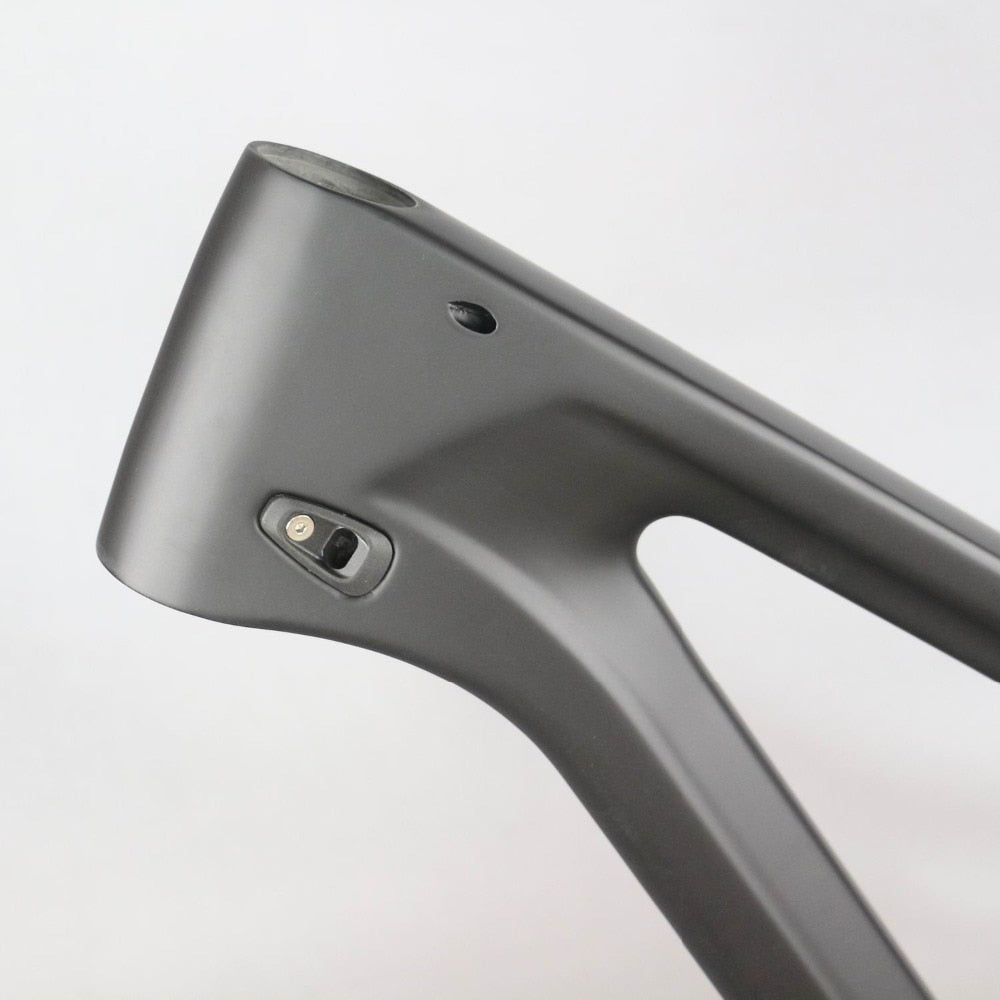

Head Tube: 1-1/8”,1-1/2” , integrated 42mm, 52mm cups (Headset included)
Seat Tube: For 31.6mm diameter seat post
Max Tire size: 29x2.5 and 27.5x2.8
Shipping: Frame is shipped Expedited Factory Direct and will arrive in 15-30 days at your door generally. For the most updated and detailed information about shipment see our Shipping and Returns page at the bottom of the site under Support.
Warranty: This frame comes with a two years full warranty and three years wholesale crash replacement.
