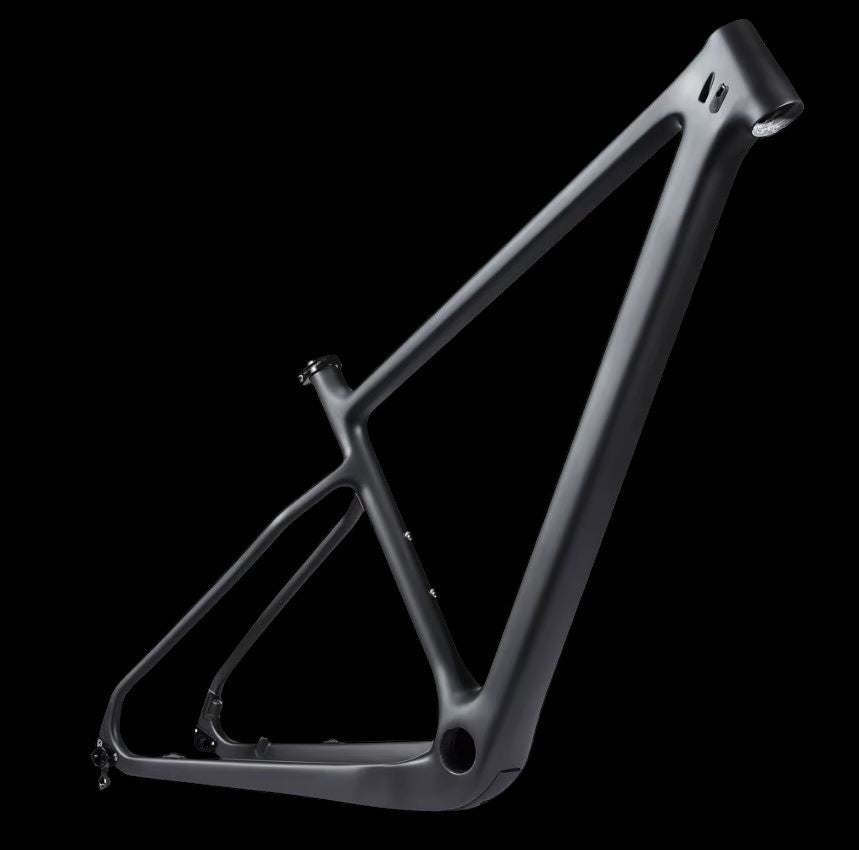

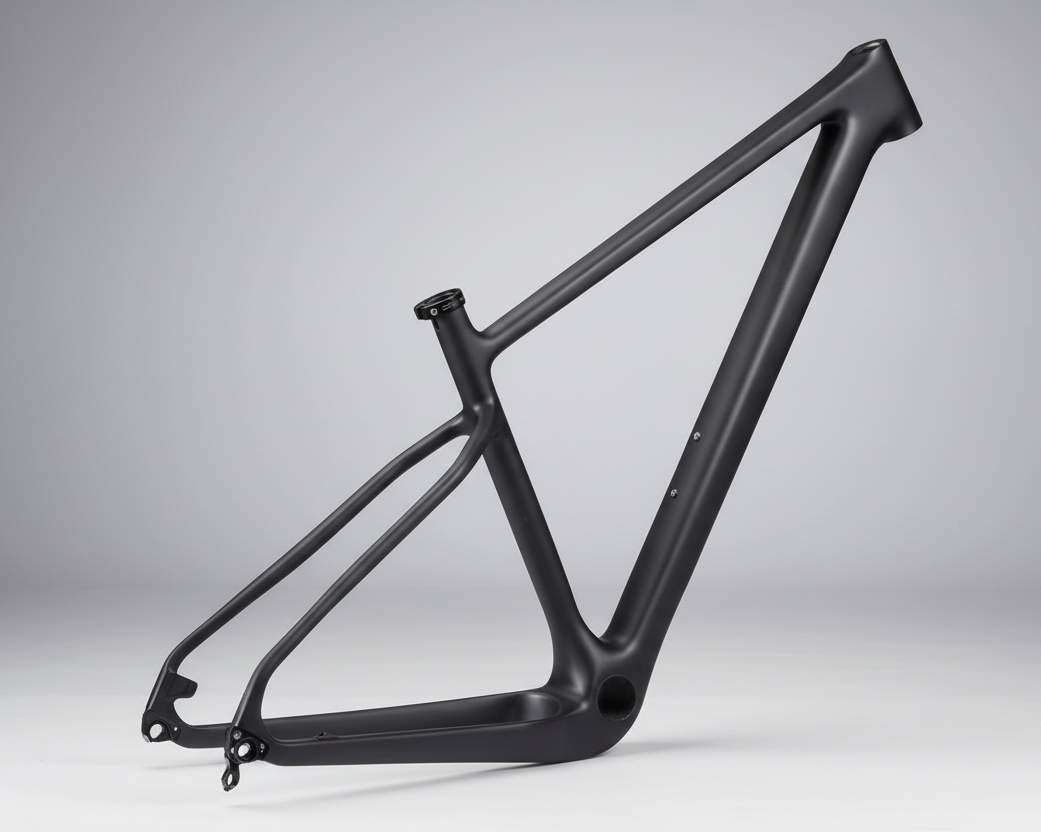

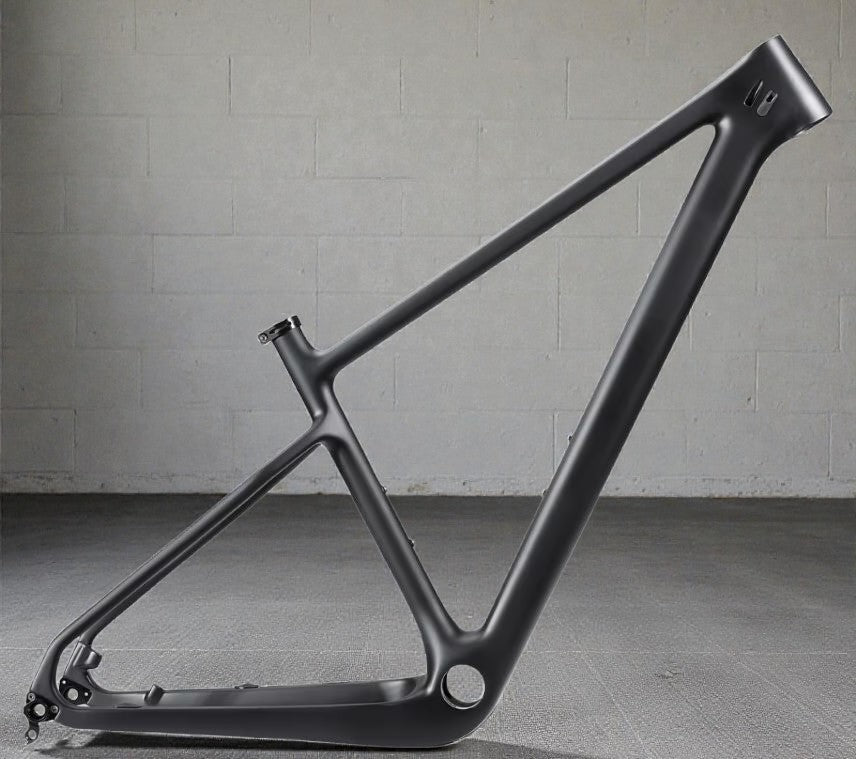

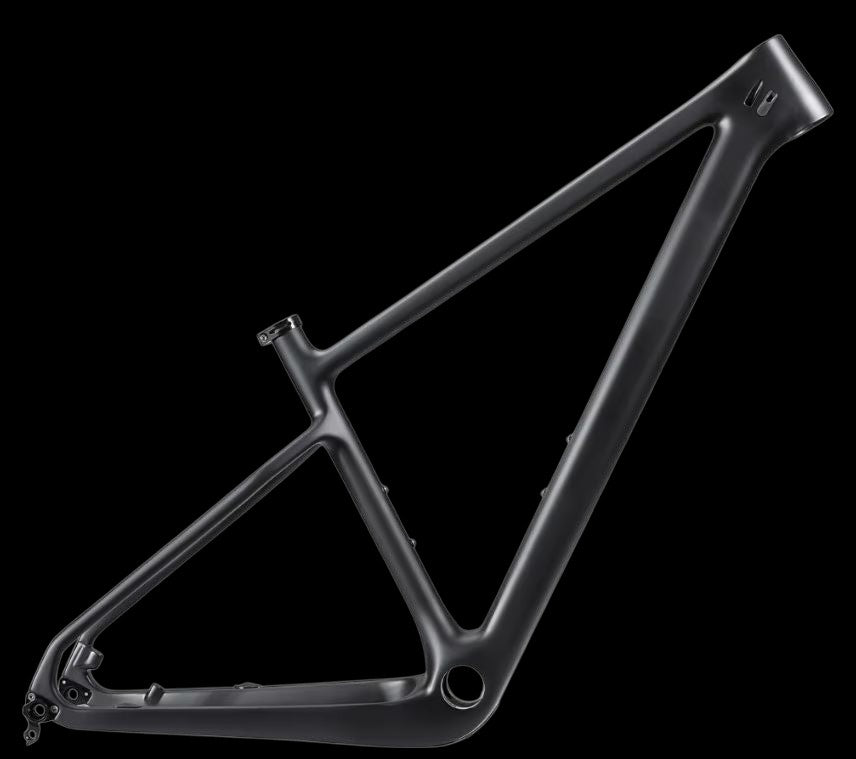

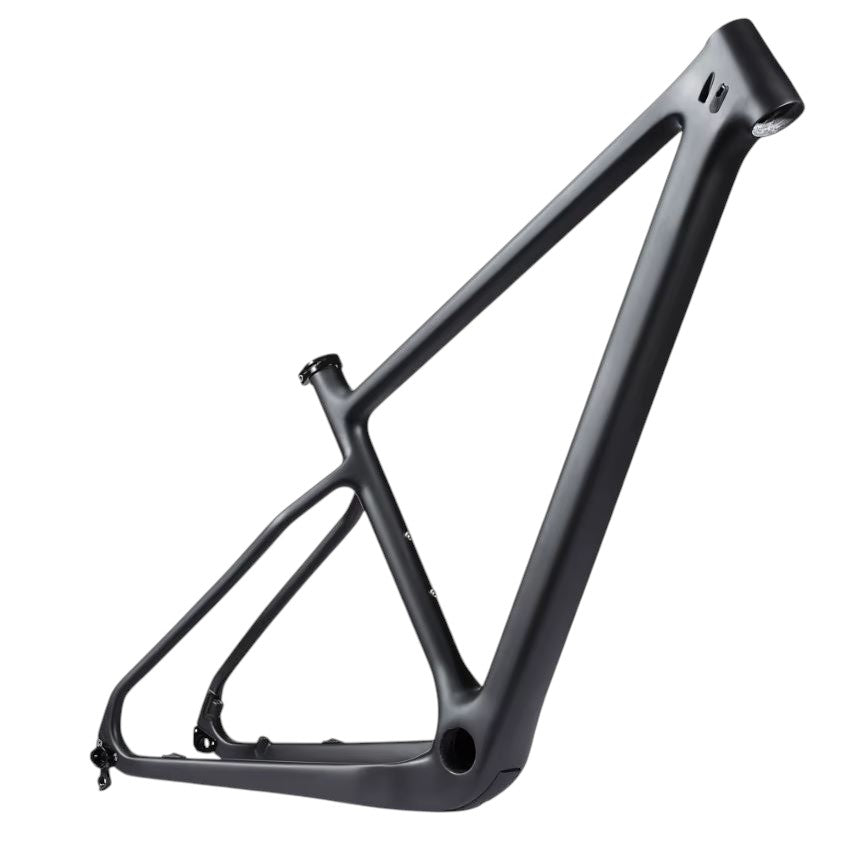

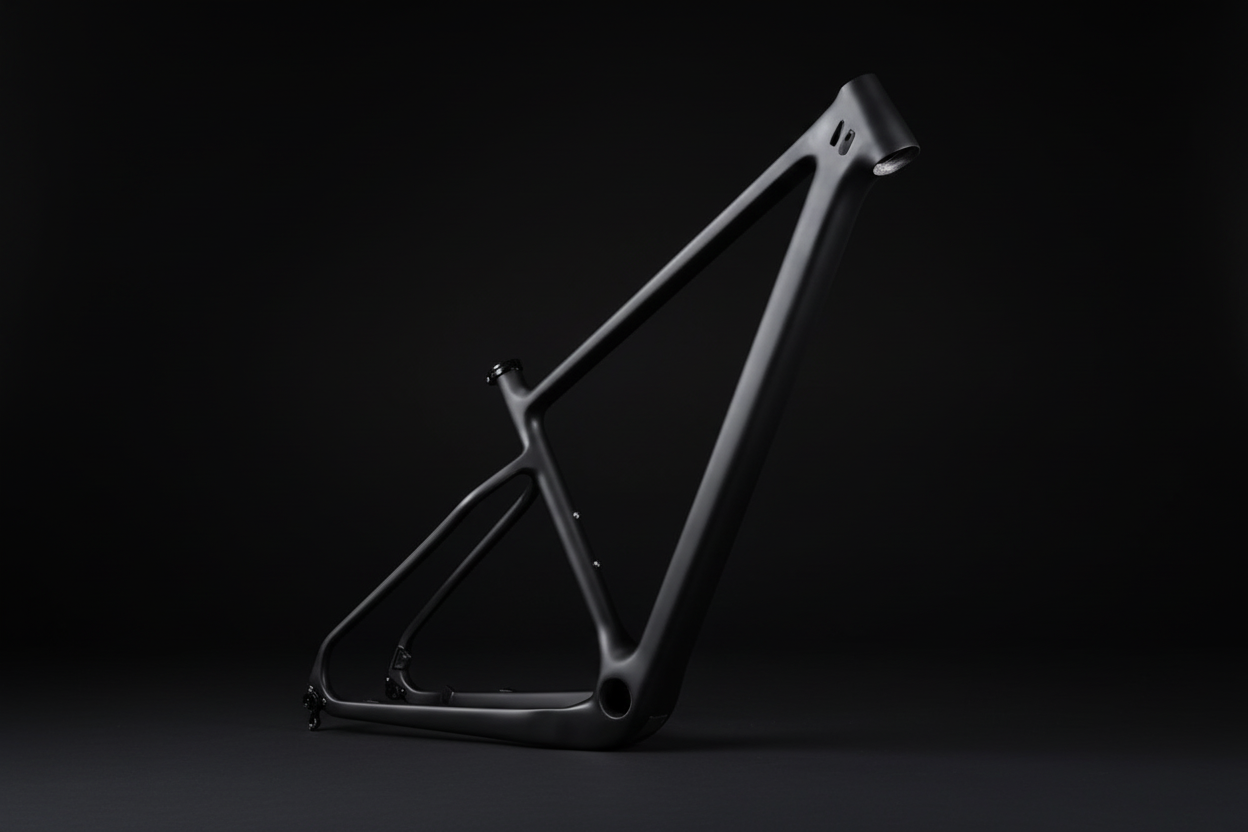

Ready to build up your own light and fast trail or XC hardtail that has evolved to ride harder and longer? This XCE29 frame from DIY Carbon Bikes is top of the line for weight, durability, comfort, and is aggressive for an XC endurance rig. Built with stiff and light T800/T1000 Carbon, a 27.2 seat tube for lighter posts and droppers, and equipped with a low maintenance threaded BSA BB shell (Choose a BB30 for single speed) this frame is for those that want a hardtail fun AND endurance riding and racing.
This mold is specifically designed to take the “hard” out of hardtail riding. The seatstays join the seat tube below the top tube junction in order to significantly curb trail chatter.
Modeled after the style and mold of the Santa Cruz Highball Hardtail.
Material: 100% High-Quality Toray T800/T1000 Carbon Fiber
Bottom Bracket: BSA (BB30 for SS riding combined with Origin 8 Eccentric BB please indicate in checkout notes)
Finish: Matte UD
Braking System: 160mm rotors on the rear
Head-tube: 1-1/8 1-1/2 (Headset included)
Seat-post Size: 27.2
Clamp size: 30.6
Spacing: 142x12 Thru Axle OR Boost 12x148 (rear thru axle included)
Standard Shipping frame will arrive in 12-20 days at your door
