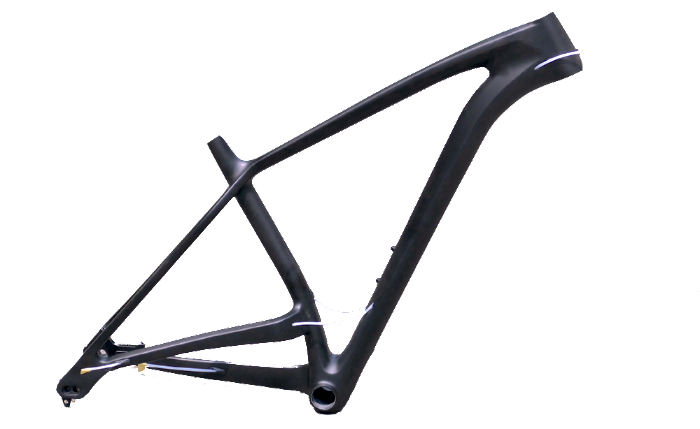

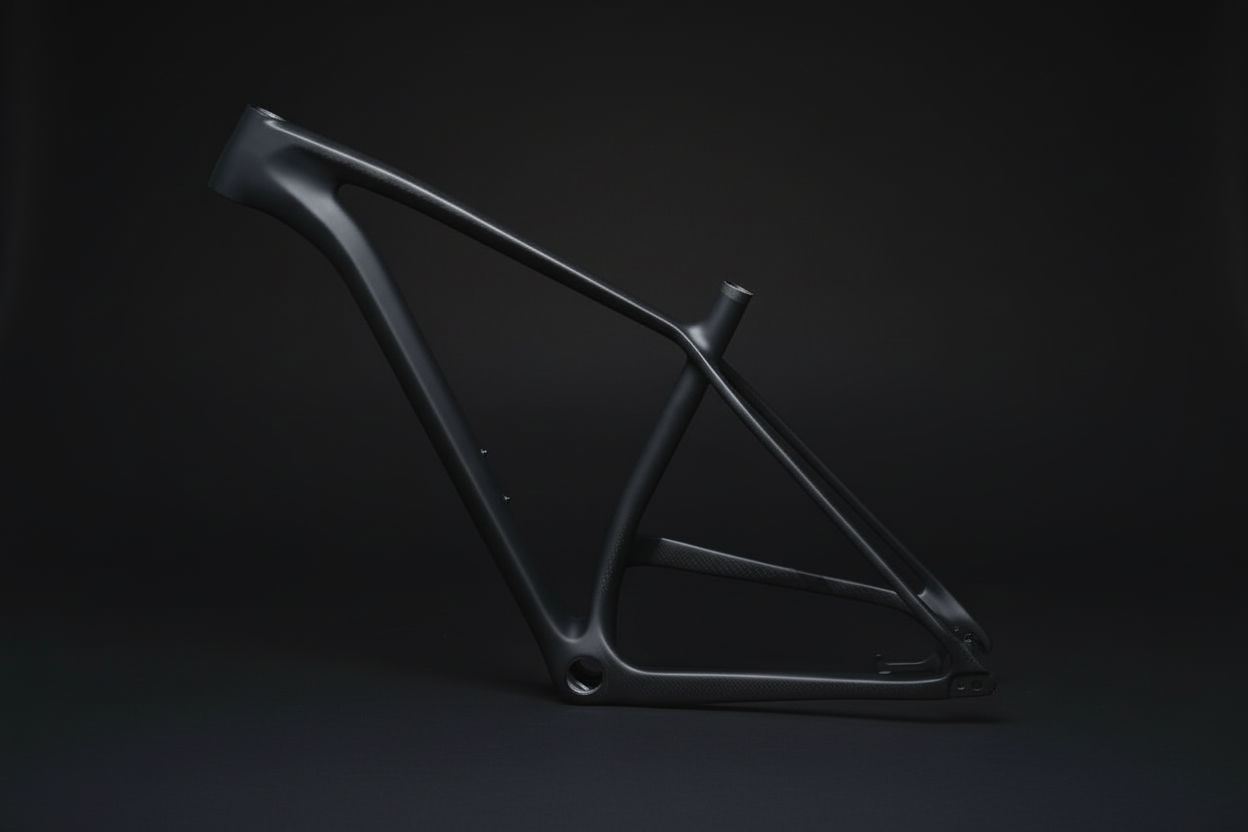

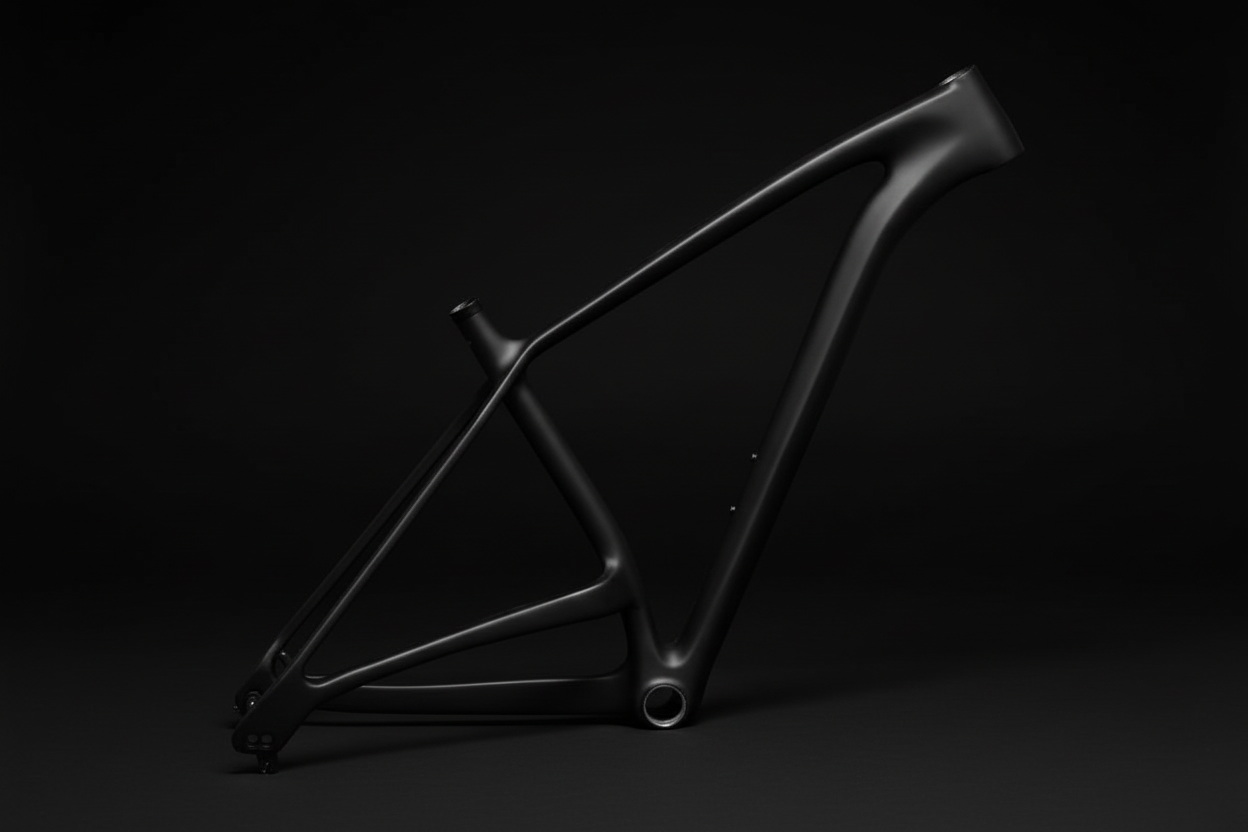

Ready to build up the most versatile and do it all hardtail that can adapt to any situation? Or to upgrade your alu Stache frame without the price tag? No better place to start than with a quality and affordable carbon frame. This PT29 Stache Style frame from DIY Carbon BIkes is top of the line for versatility.
This frame has optional dropouts to give riders three options for tire sizes. In the far slot the frame will do 29x3.0 29er plus tires, in the front slot the frame will support 29x2.2-2.5 or 27.5x2.8-3.0.
This frame offers the capability of a full suspension trail bike in a simple hardtail package, plus the extra benefits of 29+ or 27.5+ tires The wide 3" tires grip relentlessly, amplifying all the benefits of 29ers, while remarkably short chainstays deliver a fun, lively ride.
Built with triple enforced T800 Carbon, a 31.8 seat tube for wider posts and dropper posts, and equipped with a stiff and stable BB92 bottom bracket, this frame is for those that want a do-it-all hardtail with the option to switch things up.
This frame is designed in the style of the Trek Slash, but with a bit more slack geometry.
Price is $575 total shipped and includes frame and free global shipping!
Material: 100% High-Quality Toray T800 Carbon Fiber.
Heaadset: Any IS 42/52 headset
Rear Thru Axle: 12mm x 175 up to 180mm with 1.5mm thread pitch.
Wheel-size: 29er plus, 29er, or 27.5 plus
Front Fork: 29er plus recommends a rigid fork or 100-120mm. 29er recommends 120mm-130mm, 27.5 plus recommends 130-140mm.
Bottom Bracket: BB92
Weight: 1140g (M)
Finish: Matte UD matte, (Red or white paint +$100)
Braking System: 160mm rotor on the rear
Head-tube: 1-1/8 1-1/2 (Headset included)
Seat-post Size: 31.6
Clamp size: 36.4
Spacing: 148x12 BOOST Thru Axle
