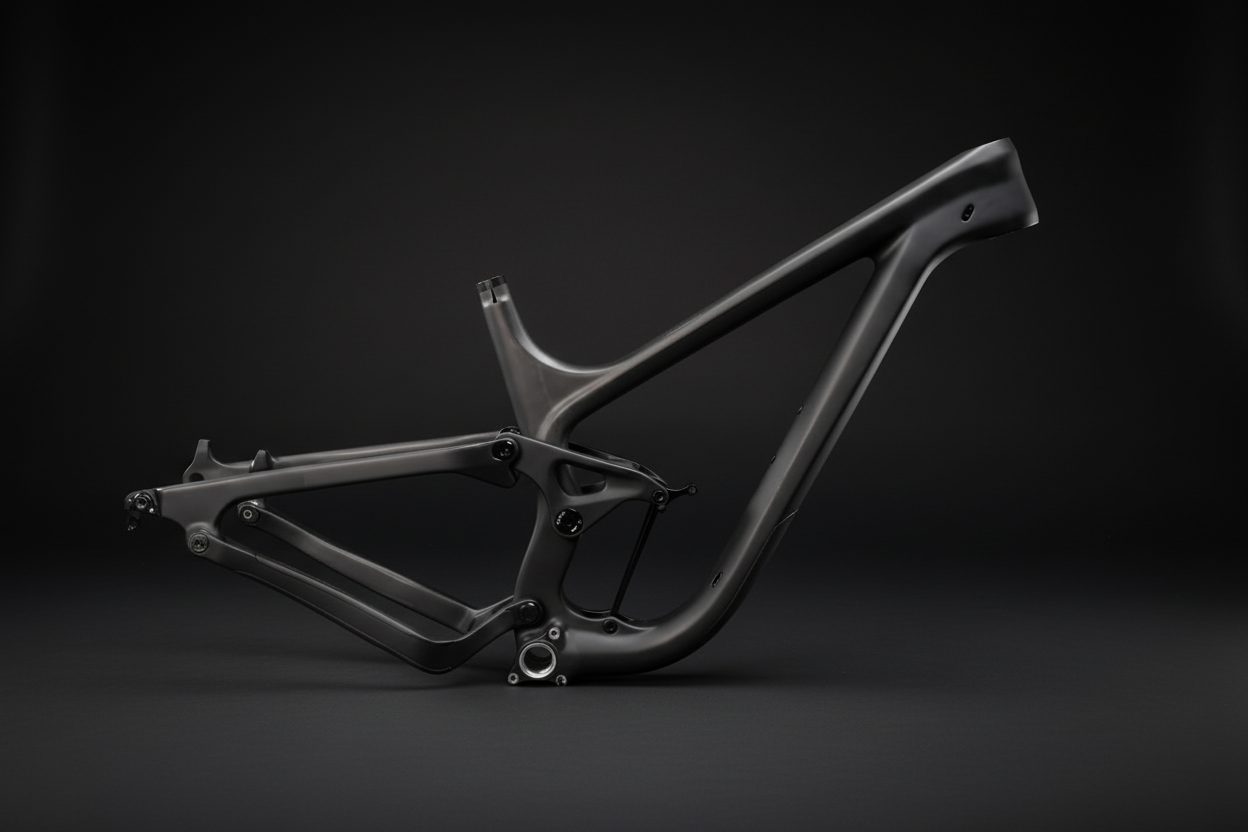

Ready to build up your own light and durable carbon Enduro MTB frame? Or upgrade your current frame? No better place to start than with a quality and affordable carbon frame. This F150 frame from DIY Carbon BIkes is a light in durable options for those looking for a full suspension with 150mm rear travel. Built with triple enforced T800 Carbon, a 30.9 seat tube for wider posts and dropper posts, and equipped with a durable, stiff, and low maintenance and durable BSA English Threaded bottom bracket, this frame is for those looking to be efficient, yet bomb gnarly descents with some big jumps.
This frame is designed in the style of Trek Slash, and can take 29er or 27.5+ wheels. The frame can take up 150-170mm fork in the front with 29er wheels and 160-180mm fork with 27.5+ wheels.
Price: $795 total shipped which includes frame, rear thru axle, headset, and FREE GLOBAL shipping.
Material: 100% High-Quality T700/T800 Carbon Fiber
Size Availability: 15.5” (S),17.5” (M) ,19.5" (L)
Finish: UD Matt (Custom Colors available for $75 upgrade, see options in images)
Rear Shock Eye to Eye: Standard is a 210 eye-to-eye but frame will take 210x50, 210x55, 210x57, 210x60, 216x63 (216, must run highest front shock to maintain slackness)
Rear Shock Hardware: 22x8mm top and bottom
Rear Travel: 150 or 160 with 210x60
Front Fork Travel: 150-170mm 29er wheels (160-180mm for 27.5 plus wheels)
Disc Rotor size:160mm
Weight: 2395g ±30g (M)
Bottom Bracket: BSA English Threaded
Cable Type: Internal Routing for the brake line, rear & front derailleur, dropper post.
Rear Spacing: BOOST 12*148mm thru axle (Axle included)
Head Tube: 1-1/8”,1-1/2” , integrated 42mm, 52mm cups (Headset included)
Seat Tube: For 30.9mm diameter seat post
Max Tire size: 29x2.5 and 27.5x2.8
Shipping: Frame is shipped Expedited Factory Direct and will arrive in 12-20 days at your door.
Warranty: This frame comes with a two years full warranty and three years wholesale crash replacement.
