DCB F150-E Trek Rail Style Carbon Full Suspension E Bike Frameset 29er or 27.5+

Regular price
$1,595.00
Sale price
$1,595.00

Ready to build up your own light and durable carbon Enduro E MTB frame? Or upgrade your current frame?  No better place to start than with a quality and affordable carbon frame. This F150 frame from DIY Carbon BIkes is a light in durable options for those looking for a E-bike full suspension with 150mm rear travel. Built with triple enforced T800 Carbon, a 31.6 seat tube for wider posts and dropper posts, and equipped with either no battery so you can buy your own, a Befang M500 motor, or a Befang M600 motor. This frame is comparable to the Trek Rail, and can take 29er or 27.5+ wheels. The frame can take up 150-170mm fork in the front with 29er wheels and 160-180mm fork with 27.5+ wheels.

Product Specs:

Material: 100% High-Quality T700/T800 Carbon Fiber

Size Availability: 16” (S),18” (M) ,20" (L)

Finish: UD Matte (Custom Colors available for $75 upgrade for Standard, $150 upgrade for Special Paint -- See options in product images)

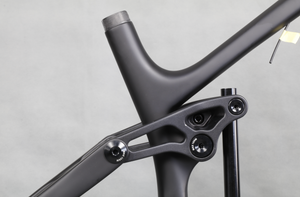

Rear Shock Eye to Eye: Standard is a 205 eye-to-eye trunnion mount shock. Standard is 205 x 57.5, but can do more or less stroke as long as the shock is 205 and trunnion mounted.

Rear Shock Hardware: 22x8mm top and bottom is Trunnion mount bolt (included)

Rear Travel: 150mm.

Front Fork Travel: 150-170mm 29er wheels (160-180mm for 27.5 plus wheels)

Disc Rotor size: 160mm

Weight:  2650g ±30g (M)

Cable Type: Internal Routing for the brake line, rear & front derailleur, dropper post.

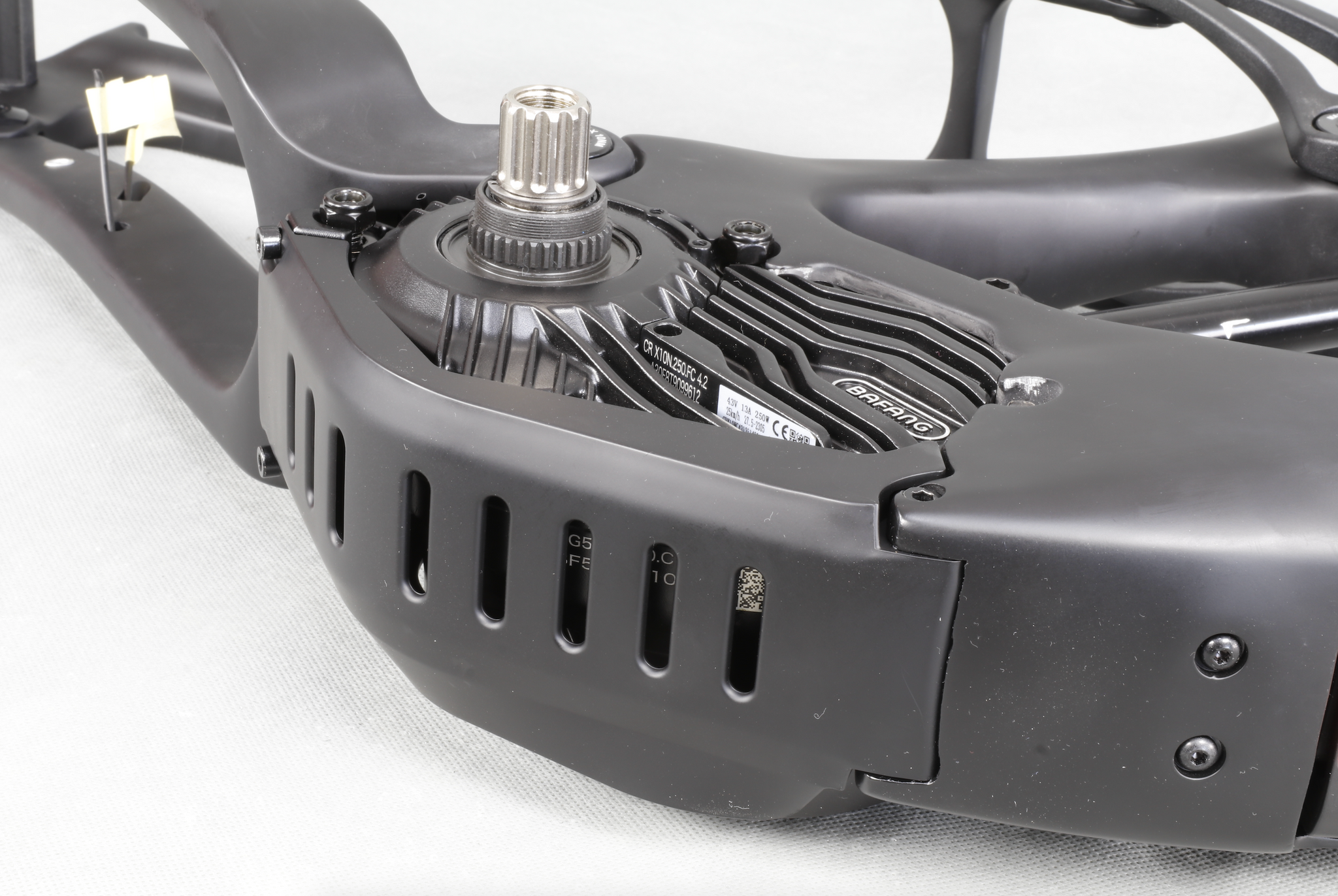

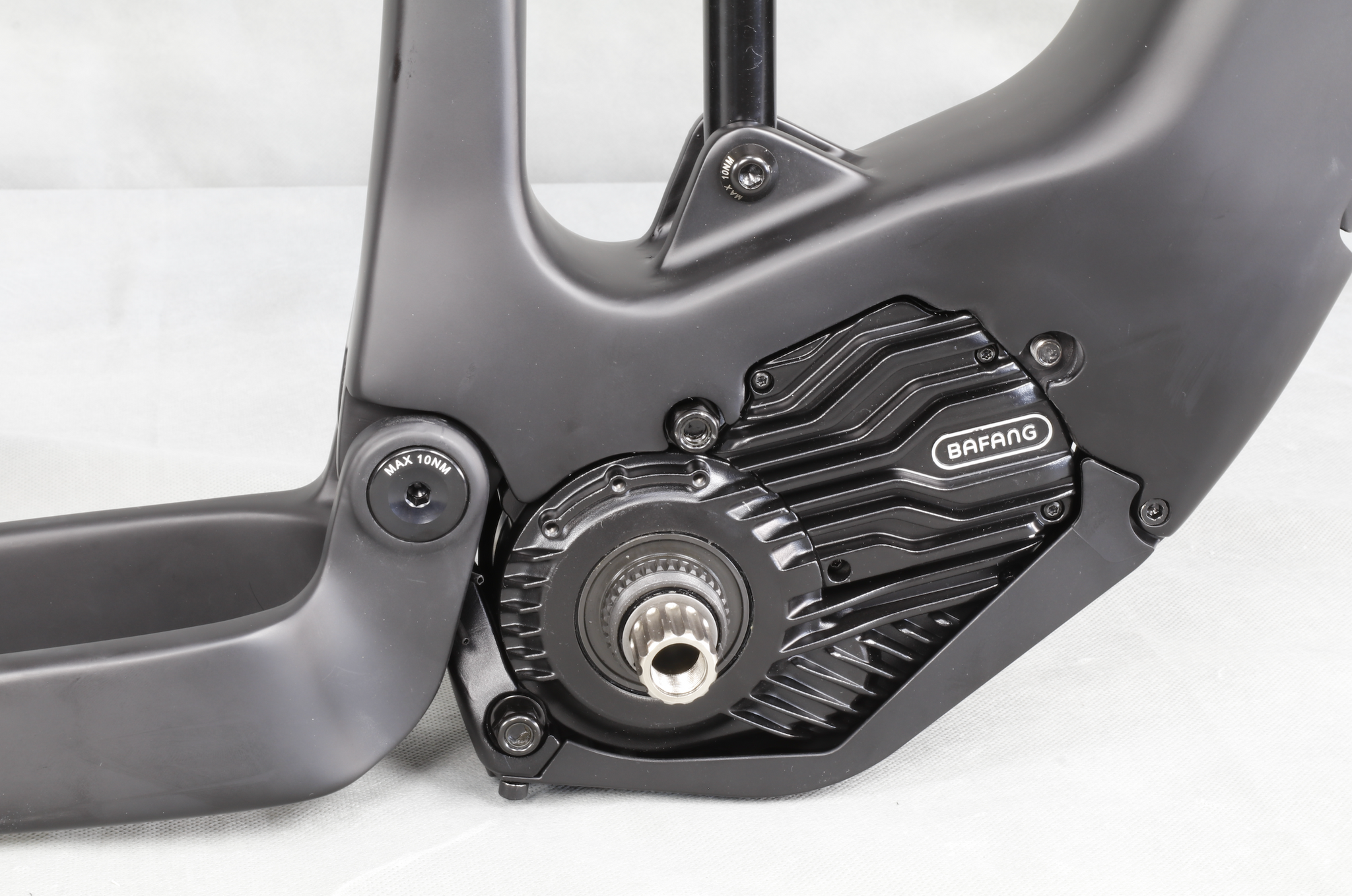

Motor and battery -  None, Befang M500, or M600 motor and 43v battery

Rear Spacing: BOOST 12*148mm thru axle (Axle included)

Head Tube: 1-1/8”,1-1/2” , integrated 42mm, 52mm cups (Headset included)

Seat Tube: For 31.6mm diameter seat post

Max Tire size: 29x2.5 and 27.5x2.8

Shipping: Frame is shipped Expedited Factory Direct. For more shipping information see our Shipping Page on the bottom of the site.

Warranty: This frame comes with a two years full warranty and three years wholesale crash replacement.
